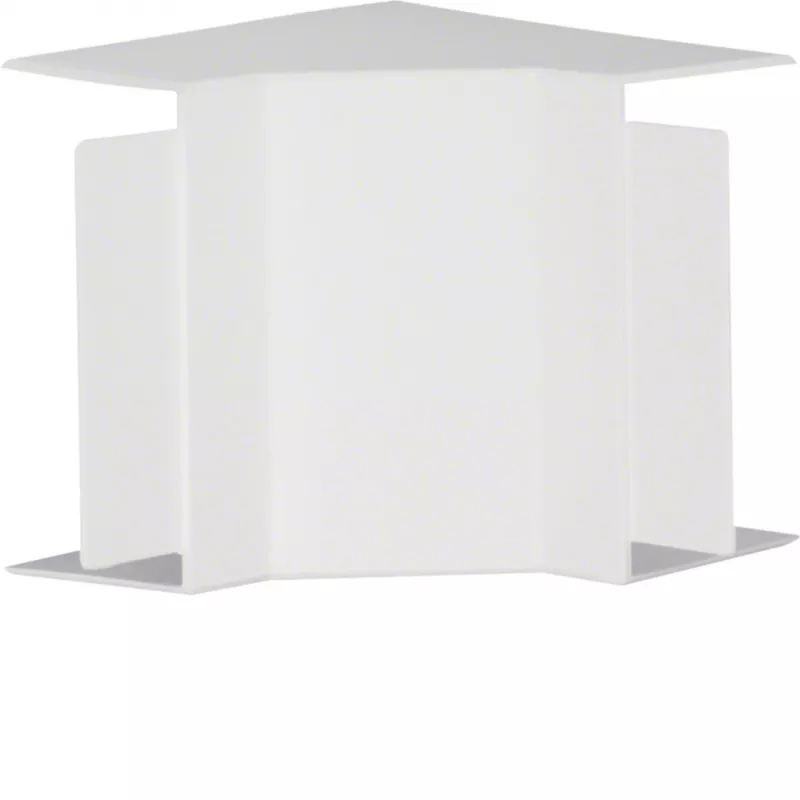

Hager Ángulo interior libre de halógenos para canal de cables LF/FB 110x60 mm blanco puro LF6011049016

Inner corner fitting for the Hager Tehalit LF/FB cable trunking system, enabling a clean 90-degree inside bend in cable management runs. Its snap-on design ensures a secure fit without tools, while the halogen-free PC/ABS material maintains fire safety in indoor electrical installations.

Advantages

The halogen-free construction reduces toxic smoke emissions in the event of fire, and the pure white RAL 9010 finish blends seamlessly with matching trunking. The clip-on mechanism simplifies installation and allows for easy reconfiguration of cable routes.

Suitable for

• Indoor electrical installations in residential and commercial buildings
• Routing power and data cables around internal corners
• Use with Hager Tehalit LF/FB trunking 110 x 60 mm

Key specifications

• Fitting type: Inner corner
• Compatible trunking system: Hager Tehalit LF/FB
• Compatible trunking dimensions (W x H): 110 x 60 mm
• Material: PC/ABS (halogen-free)
• Colour: Pure white (RAL 9010)
• Mounting method: Snap-on / clip-on
• Surface finish: Matt
• Fire behaviour: Self-extinguishing (850°C)
• Temperature resistance: -5°C to +60°C
• Protection class: IP30
• Standards compliance: EN 50085-1, EN 50085-2-1
• Packaging unit: 1 piece

Recommendations

For a complete installation, combine with Hager Tehalit LF/FB trunking lengths and matching end caps. Verify trunking dimensions before ordering to ensure compatibility.
