Hager bloque de distribución 250A 1 polo KJ02AN 1x35-120/1x1.5-50/4x1.5-16/8x2.5

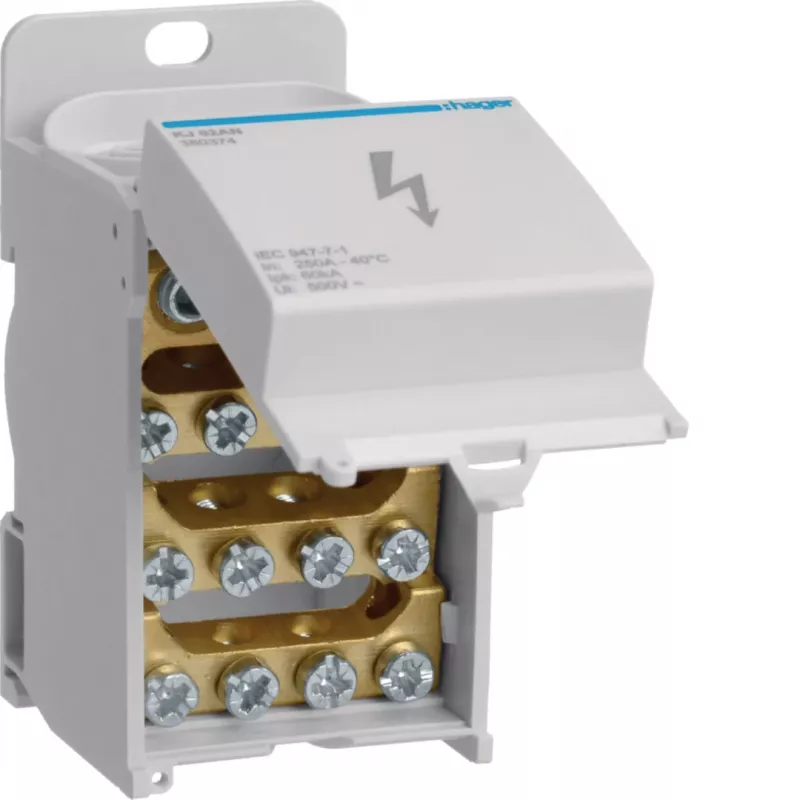

The Hager KJ02AN distribution block is a high-performance 1-pole terminal block designed for main power distribution in industrial and commercial electrical installations. With a rated current of 250 A and a rated voltage of 1000 V AC/DC, it ensures reliable and safe power distribution. The block features screw terminals and supports a wide range of conductor cross-sections: main input 1 x 35-120 mm², output 1 x 1.5-50 mm², output 2 x 4 x 1.5-16 mm², and output 3 x 8 x 1.5-2.5 mm². It is suitable for DIN rail or panel mounting and complies with IEC 60947-7-1.

Advantages

High current capacity of 250 A ensures robust power distribution. Versatile terminal configuration accommodates various conductor sizes. Screw terminals provide secure and reliable connections. Compact design saves space in distribution boards. Complies with international standards for safety and performance.

Suitable for

• Main distribution boards in commercial buildings
• Industrial power distribution systems
• Electrical panels requiring high current capacity
• Installations needing multiple output terminals

Key specifications

• Rated Current: 250 A
• Rated Voltage: 1000 V AC/DC
• Number of Poles: 1
• Main Input: 1 x 35-120 mm²
• Output 1: 1 x 1.5-50 mm²
• Output 2: 4 x 1.5-16 mm²
• Output 3: 8 x 1.5-2.5 mm²
• Connection Type: Screw Terminals
• Mounting: DIN Rail / Panel Mount
• Short-Circuit Current (Icw): 20 kA
• Short-Circuit Peak Current (Ipk): 50 kA
• Protection Degree: IP20
• Conductor Material: Copper / Aluminium (main input)
• Insulation Material: Polyamide
• Standard: IEC 60947-7-1
• Operating Temperature: -25°C to +70°C

Recommendations

For optimal performance, ensure proper tightening torque as per manufacturer guidelines. Use appropriate cable lugs for aluminium conductors. This distribution block is ideal for new installations or upgrades in commercial and industrial settings.
