Hager BR6517039016 Esquina exterior para canal de cables 170x68 mm, blanco

Snap-on external corner for tehalit.BR cable ducts, impact-resistant IK07 and halogen-free PVC in signal white RAL 9010.

Overview

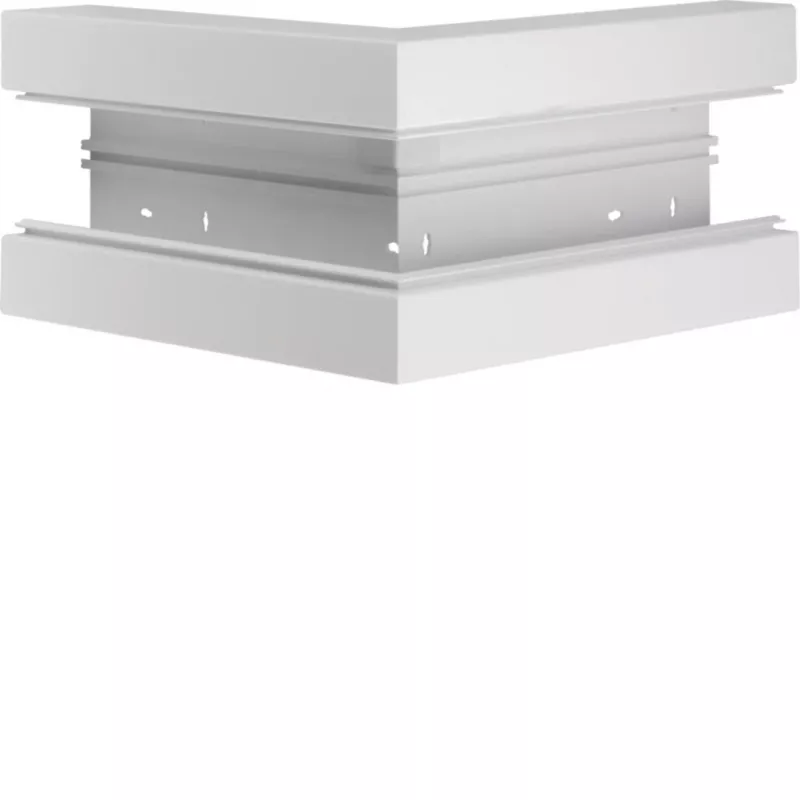

The Hager BR6517039016 is a white external corner fitting for the tehalit.BR cable duct system. It accommodates ducts with a width of 170 mm and depth of 68 mm, providing a clean 90-degree turn for cable routing. The corner features a snap-on mounting mechanism for quick installation without tools.

What stands out

• Halogen-free PVC construction for improved fire safety
• Impact resistance rated IK07, suitable for areas with moderate mechanical stress
• Glossy surface finish in RAL 9010 signal white, matching standard duct colours
• Self-extinguishing material reduces flame propagation
• Operating temperature range from -5 °C to +60 °C

Technical details

• Compatible duct width: 170 mm
• Compatible duct depth: 68 mm
• Material: PVC (Polyvinyl Chloride)
• Colour: White (RAL 9010)
• Mounting type: Snap-on
• Quantity per pack: 1 piece

Our verdict

A reliable corner piece for professional cable management, offering halogen-free safety and easy installation.
