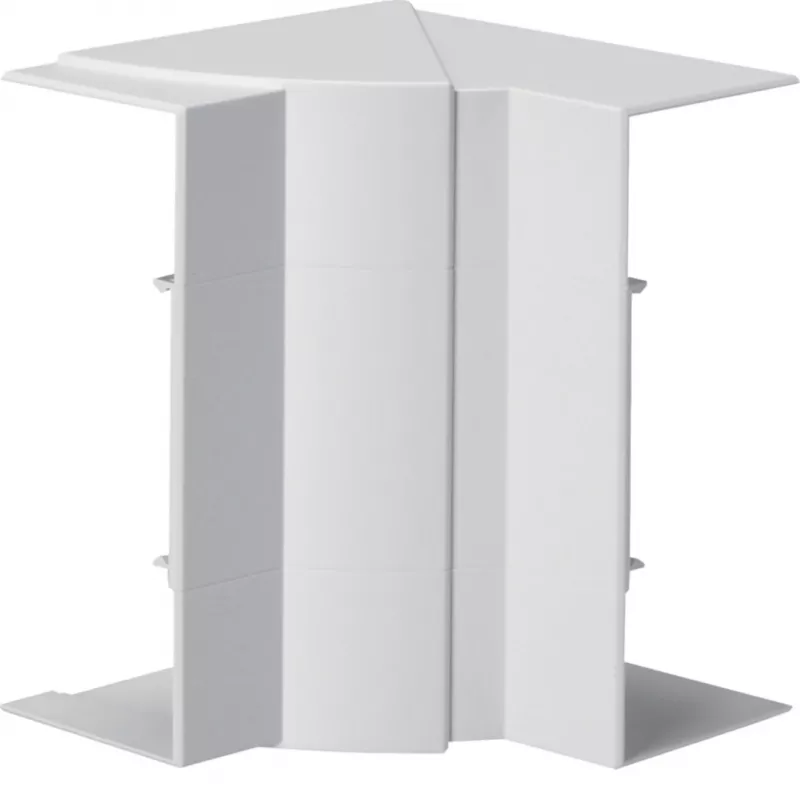

Hager BR651704H9016 curva de esquina interior ajustable para canaleta BR/A/S 68x170mm blanco RAL 9016

The Hager BR651704H9016 is a high-quality adjustable inner corner designed for use with the Hager BR/A/S cable trunking system. This accessory allows for professional internal corner routing in cable management installations, ensuring a clean and organized appearance. Manufactured from durable PVC in traffic white (RAL 9016), it provides reliable protection and easy snap-on mounting.

Advantages

Adjustable angle range from 80° to 100° for flexible installation. Self-extinguishing material enhances safety. Snap-on mounting for quick and tool-free assembly. Compatible with trunking dimensions 68 x 170 mm.

Suitable for

• Internal corners in cable trunking systems
• Commercial and industrial cable management
• Installations requiring adjustable corner angles

Key specifications

• Product Type: Adjustable Inner Corner
• System Compatibility: Hager BR/A/S Cable Trunking System
• Compatible Trunking Dimensions (H x W): 68 x 170 mm
• Material: PVC (Polyvinyl Chloride)
• Color: Traffic White (RAL 9016)
• Adjustable Angle Range: 80° to 100°
• Protection Degree: IP30 (when installed correctly)
• Glow Wire Test Temperature: 850 °C
• Operating Temperature Range: -5 to +60 °C
• Fire Behaviour: Self-extinguishing
• Standards Compliance: EN 50085-1, EN 50085-2-1
• Halogen-free: No
• Mounting Type: Snap-on / Clip-on

Recommendations

For optimal performance, ensure the trunking system is clean and properly aligned before snapping the corner into place. This product is designed for indoor use only.
