Hager BR8513019016 parte inferior de canaleta de antepecho 85x130 mm blanco tráfico 2 m

With an impact resistance of IK07 and a self-extinguishing PVC body, this dado trunking base part delivers robust cable management for commercial environments. The 85x130mm profile in traffic white (RAL 9016) provides a clean, matte finish that integrates seamlessly into office and public spaces.

Overview

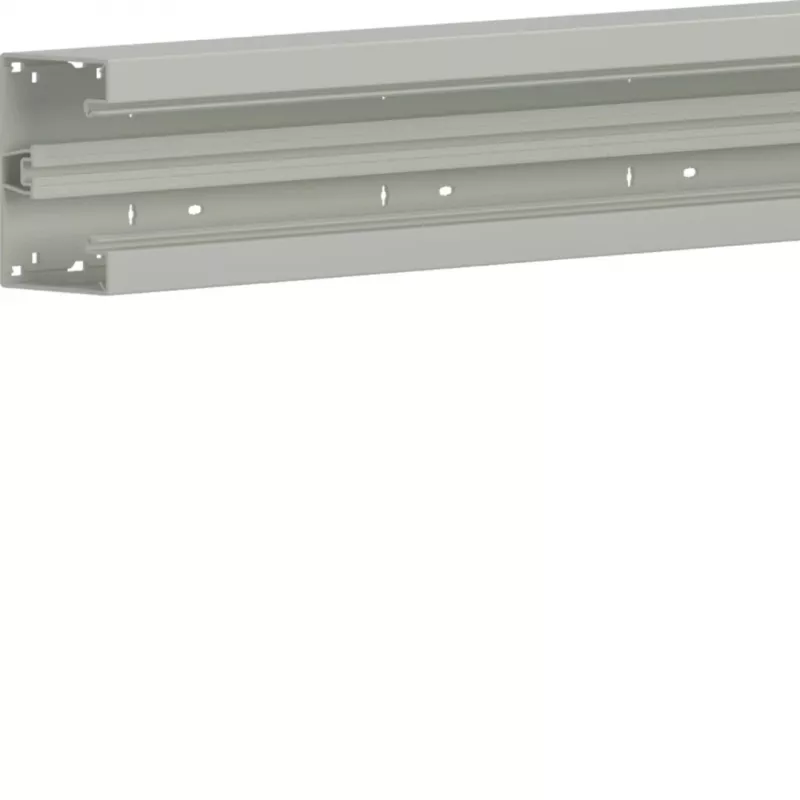

The Hager BR8513019016 is a base part for the Tehalit BR dado trunking system. It measures 2000mm in length and is designed for wall mounting. The trunking is configurable with dividers to create multiple compartments, allowing organized routing of power and data cables.

What stands out

• Self-extinguishing PVC construction for enhanced fire safety
• Impact resistance rated IK07 for durability in high-traffic areas
• Configurable compartments with optional dividers
• Traffic white (RAL 9016) matte finish for a professional look

Technical details

• Material: PVC (Polyvinyl Chloride)
• Colour: Traffic White (RAL 9016)
• Length: 2000 mm
• Height: 85 mm
• Width: 130 mm
• Mounting Type: Wall Mounting
• Halogen-free: No
• Self-extinguishing: Yes
• Impact Resistance: IK07
• Surface Finish: Matte
• Temperature Range (Installation): -5°C to +60°C

Our verdict

A reliable base part for structured cable routing, offering flexibility and safety in a clean white finish.
