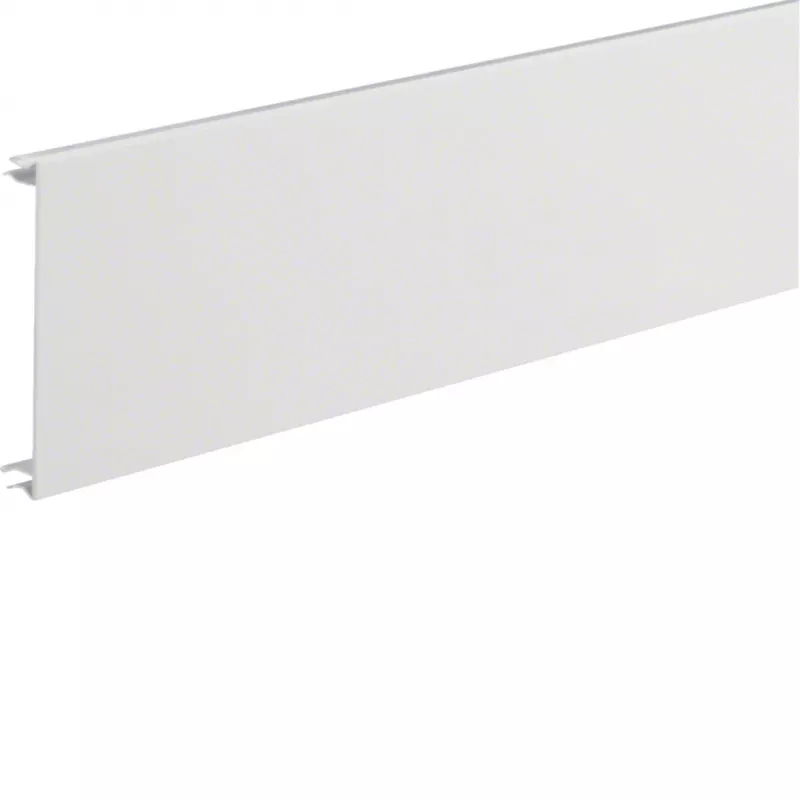

Hager BRA12029016 tapa de canal para serie BRA, 120 mm de ancho, 2000 mm de largo, blanco tráfico (RAL 9016)

Electricians and installers working on commercial or residential projects use the Hager BRA12029016 trunking cover to neatly close 120 mm wide BRA series trunking runs. This 2-metre cover snaps securely onto the base profile, protecting cables while maintaining a clean, professional finish.

Key specifications

• Product type: Trunking cover
• Compatible system: Hager BRA series, 120 mm nominal width
• Length: 2000 mm
• Material: PVC
• Colour: Traffic white (RAL 9016)
• Surface finish: Matt
• Mounting: Clip-on / snap-on
• Halogen-free: Yes
• UV resistant: Yes
• Flame retardant: Yes
• Operating temperature: -5 °C to +60 °C
• Profile height: 16 mm

Why choose it

The cover is made from halogen-free PVC, which reduces toxic smoke emissions in the event of fire. Its UV resistance prevents discolouration when installed near windows or in sunlit areas, and the matt traffic white finish blends with most ceilings and walls.

Ideal use cases

• Office and commercial cable management
• Residential electrical installations
• Retrofit projects where existing trunking needs a replacement cover

Good to know

The cover is designed specifically for Hager BRA series base profiles with a 120 mm width. It clips on without tools, allowing quick access for cable changes. The material is flame retardant, adding an extra layer of safety in building installations.
