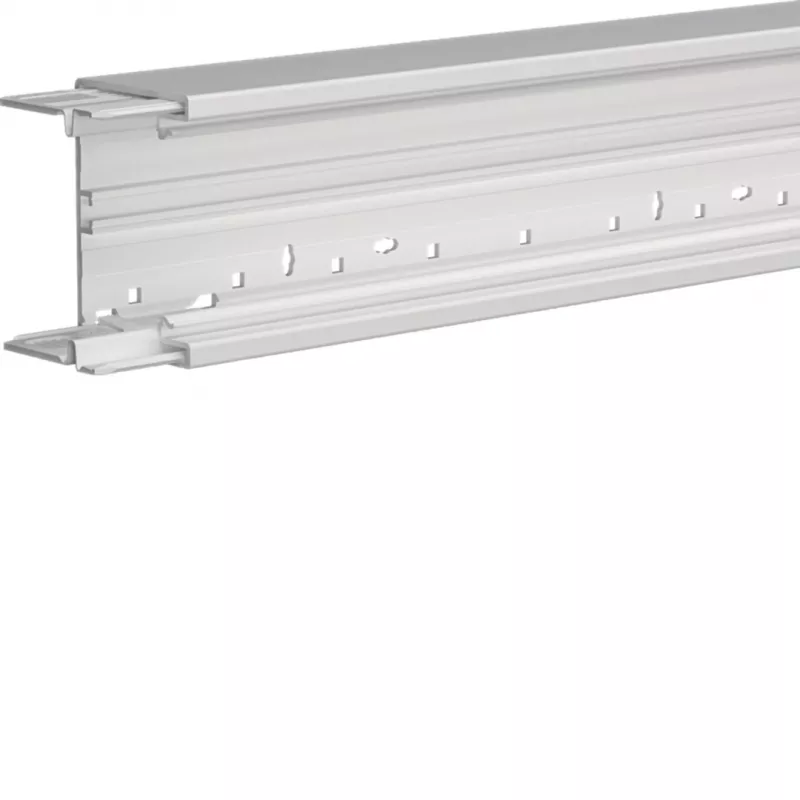

HAGER BRH6510019016 parte inferior de canal de antepecho, libre de halógenos, blanco puro, 65x100mm, 2000mm

This bottom part for the BRH dado trunking system stands out with its halogen-free, flame-retardant construction, making it a safer choice for indoor cable management in offices, public buildings, and residential areas. Its pure white finish (RAL 9010) blends seamlessly with modern interiors, while the pre-punched base simplifies wall mounting.

Highlights

• Halogen-free and flame-retardant plastic for enhanced fire safety
• Pure white colour (RAL 9010) matches standard interior designs
• Pre-punched base for direct wall mounting, no extra drilling needed
• Compatible with 80 mm wide covers (sold separately)
• Allows partitioning with optional accessories for organised cable runs

In daily use

Designed for the BRH series, this bottom section pairs with a matching top cover to form a complete trunking run. The 65 mm system height and 100 mm width provide ample space for power and data cables, while the protective film on visible surfaces keeps it clean during installation. Device installation is possible with system-compatible frames, making it a practical base for sockets and switches.

Full specifications

• Product Type: Dado Trunking Bottom Part
• Material: Halogen-free plastic
• Colour: Pure White (RAL 9010)
• Nominal System Height: 65 mm
• Nominal System Width: 100 mm
• Length: 2000 mm
• Compatible Cover Width: 80 mm
• Mounting Type: Wall mounting
• Protection Class (IP): IP20
• Fire Behavior: Halogen-free, flame-retardant
• Temperature Range (Operation): -5°C to +60°C
• Number of Base Channels: 1
• Partitioning Capability: Yes, with optional accessories
• Base Perforation: Yes, for direct mounting
• Protective Film: Yes, on visible surfaces
• Suitable for Device Installation: Yes, with system-compatible device frames
• Application Area: Indoor cable management for offices, public buildings, and residential areas
• Manufacturer Series: BRH

Final note

For a complete installation, order the matching top cover and any required end caps separately.
