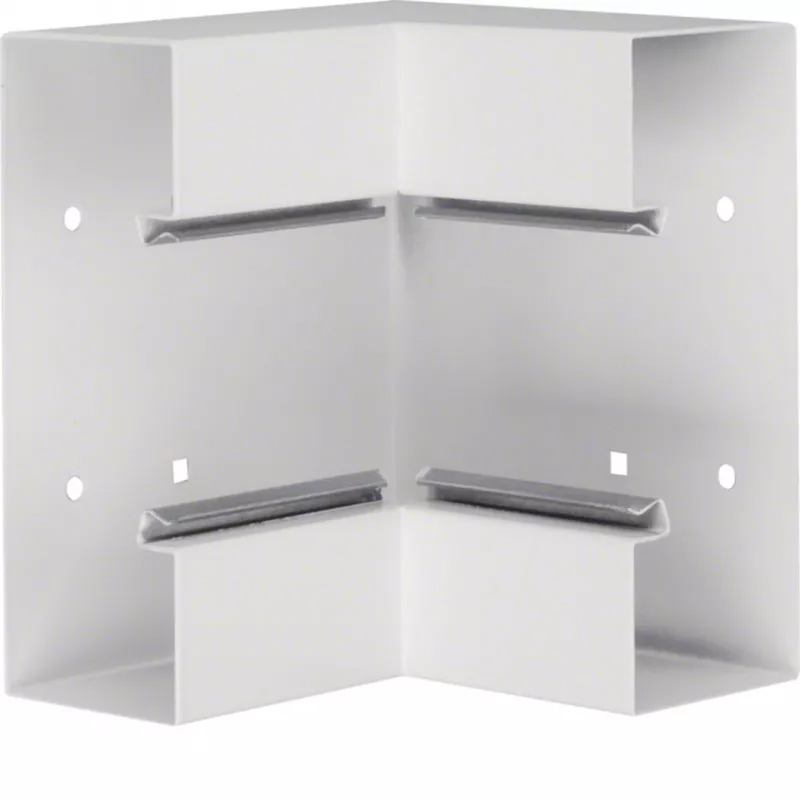

Hager BRS perfil base esquina interior 65x170mm acero galvanizado BRS6517049016

When routing cable trunking around a 90-degree internal corner in a commercial or industrial installation, the Hager BRS Inner Corner Base Profile provides a clean, protected transition. It is part of the Hager BRS cable management system and is intended for use with 65 mm high trunking with a 170 mm width.

Key specifications

• Product type: Inner corner base profile
• Material: Sheet steel, galvanized
• Colour: Metallic grey
• Compatible trunking height: 65 mm
• Compatible trunking width: 170 mm
• Corner type: Inner corner (90-degree)
• Halogen-free: Yes
• Flammability class: Non-flammable
• Corrosion resistance: Yes (galvanized)
• Standards compliance: RoHS compliant

Why choose it

The galvanized steel construction offers long-term durability and corrosion resistance, making it suitable for demanding environments. Its precise design ensures a seamless fit with Hager BRS trunking, maintaining cable protection and a professional finish.

Ideal use cases

• Internal corner transitions in cable management systems
• Commercial and industrial electrical installations
• Routing power or data cables around structural corners

Good to know

The profile is designed for system integration and is not a standalone mounting accessory. It is halogen-free and non-flammable, contributing to safety in building installations.
