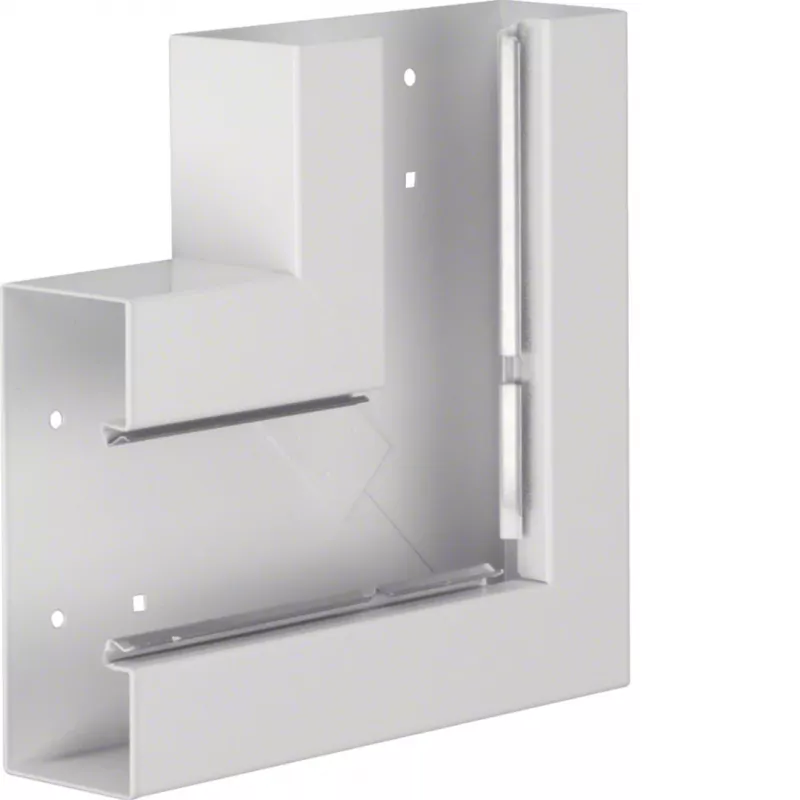

Hager BRS6517059016 escuadra plana 170x65 mm blanco

Internal corners in cable trunking runs often force installers to bend or cut covers, which can look untidy and compromise cable protection. The Hager BRS6517059016 flat angle solves this by providing a factory-moulded 90° bend for the BRN65170 trunking system, keeping cable routing clean and professional.

Who is it for

Electricians and panel builders who install Hager BRN65170 cable trunking and need a reliable, snap-on internal corner piece for flat surfaces. It is also useful for maintenance teams extending or modifying existing trunking routes.

Main features

• Compatible with Hager BRN65170 trunking, 170 mm wide and 65 mm high.
• 90° flat angle for internal corner transitions.
• Snap-on mounting – no screws or adhesive required.
• White PVC with RAL 9010 finish to match standard trunking.
• Self-extinguishing material for safer installations.

Specifications

• Product type: Flat angle / internal corner
• Compatible trunking width: 170 mm
• Compatible trunking height: 65 mm
• Angle: 90°
• Colour: White (RAL 9010)
• Material: PVC
• Mounting type: Snap-on / clip-on
• Quantity per pack: 1 piece

Tips

When planning a trunking run, count internal corners carefully – each 90° change of direction on a flat surface needs one flat angle. Keep a spare on site to avoid delays during installation.
