Hager Campo de contador universal ZH53X9ST, 1 emplazamiento de contador, 3 filas de distribución, 1350mm, preconfeccionado, barra colectora de 5 polos, 63A, homologación regional NRW/SH/MV/N-Sachsen

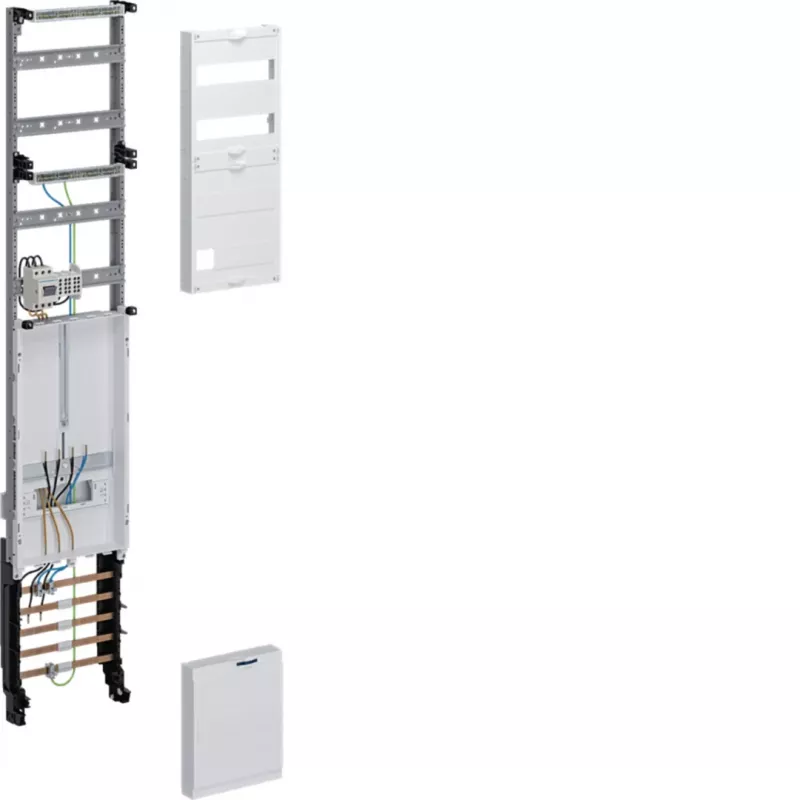

This complete universal meter panel field from Hager integrates a metering position and a three-row distribution board in a single compact unit. Pre-wired and ready for connection, it streamlines installation in residential and commercial electrical systems where space and reliability are critical.

Advantages

The panel arrives fully pre-wired, cutting on-site assembly time and reducing wiring errors. Its 5-pole busbar system supports a rated current up to 63 A, ensuring safe power distribution. The steel sheet enclosure provides robust protection, while the IP2XC rating safeguards against accidental contact when installed. Regional approvals for NRW, SH, MV, and N-Sachsen confirm compliance with local utility requirements.

Suitable for

• Residential buildings with single-meter installations
• Small commercial units requiring a combined meter and distribution panel
• Projects in the German regions of North Rhine-Westphalia, Schleswig-Holstein, Mecklenburg-Vorpommern, and Northern Saxony
• Installations in flush-mounted or surface-mounted cabinets from the Hager ZB or ZS series

Key specifications

• Number of meter positions: 1
• Integrated distribution field: Yes, with 3 rows of 12 module units each (36 TE total)
• Overall dimensions: 1350 mm height, 250 mm width, 160 mm depth
• Busbar system: 5-pole, rated current 63 A
• Rated voltage: 230/400 V AC
• Connection type: Screw terminals
• Material: Steel sheet
• Protection class (installed): IP2XC
• Standards: DIN VDE 0603-1, DIN 43870-1

Recommendations

For a seamless installation, pair this panel with Hager ZB or ZS series cabinets and use appropriate cable glands to maintain the IP2XC protection. Verify local utility regulations before commissioning.
