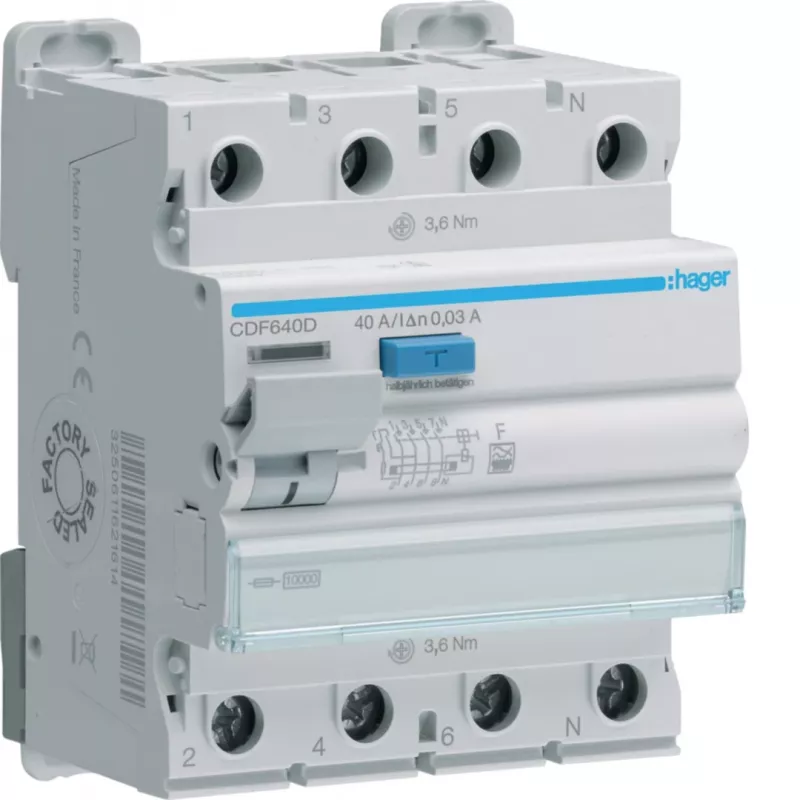

Hager CDF640D Interruptor diferencial 4 polos 10kA 40A 30mA Tipo F

The Hager CDF640D is a high-quality residual current circuit breaker (RCCB) designed for reliable protection against earth faults. With 4 poles, a rated current of 40A, and a rated residual current of 30mA, it ensures safety in electrical installations. Type F sensitivity makes it suitable for circuits with frequency converters and other electronic loads.

Advantages

Compact 4-module design saves space on DIN rail. High breaking capacity of 10kA ensures robust performance. Type F RCD provides protection against pulsating DC and mixed-frequency residual currents. Easy installation with screw terminals accepting up to 35mm² rigid or 25mm² flexible conductors.

Suitable for

• Residential and commercial electrical panels
• Circuits with variable frequency drives, inverters, or other electronic equipment
• Protection against electric shock and fire hazards

Key specifications

• Brand: Hager
• Model: CDF640D
• Type: Residual Current Circuit Breaker (RCCB)
• Number of Poles: 4
• Rated Current: 40 A
• Rated Residual Current: 30 mA
• RCD Type: Type F
• Short-Circuit Breaking Capacity: 10 kA
• Rated Voltage: 230/400 V AC
• Frequency: 50/60 Hz
• Mounting: DIN Rail
• Number of Modules: 4
• Degree of Protection (Terminals): IP20
• Degree of Protection (Installed): IP40
• Tripping Characteristic: Instantaneous
• Terminal Capacity (Rigid): 1 - 35 mm²
• Terminal Capacity (Flexible): 1 - 25 mm²
• Operating Temperature: -25 to 40 °C
• Standards: EN 61008-1, IEC 61008-1

Recommendations

For optimal safety, always install this RCCB by a qualified electrician. Ensure the device is suitable for the specific electrical characteristics of your installation.
