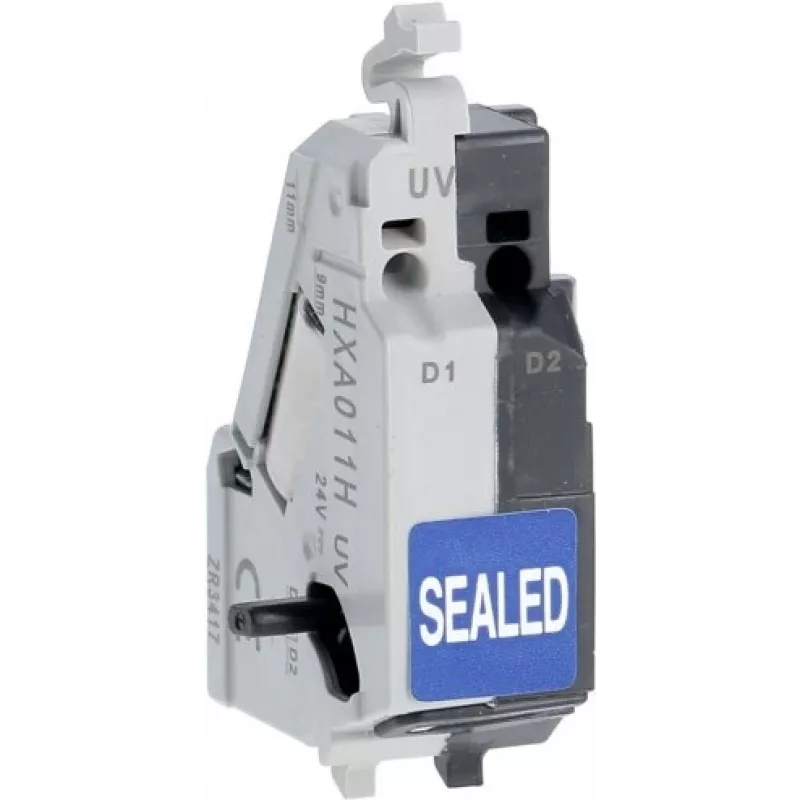

Hager Disparador de subtensión para interruptores automáticos x160-x250, 24 V DC, HXA011H

Trips your Hager h3+ circuit breaker automatically when voltage drops below a safe threshold – protecting equipment from undervoltage damage. This undervoltage release is engineered for x160 and x250 frame sizes and operates on 24 V DC, ensuring reliable protection in industrial and commercial distribution systems.

Overview

The Hager HXA011H undervoltage release is an internal accessory designed to mount directly within compatible Hager h3+ circuit breakers. It monitors supply voltage and triggers a trip when voltage falls below the specified threshold, preventing equipment from running under unstable power conditions. With screw terminal connections and compliance to IEC 60947-2, it integrates seamlessly into your existing protection scheme.

What stands out

• Automatic tripping on undervoltage safeguards connected loads
• Compatible with Hager h3+ series, frame sizes x160 and x250
• 24 V DC operating voltage for direct current control circuits
• Compact internal mounting saves panel space
• Wide operating temperature range from -25°C to +70°C

Technical details

• Accessory type: Undervoltage release
• Brand compatibility: Hager
• Circuit breaker series: h3+
• Compatible frame sizes: x160, x250
• Operating voltage: 24 V DC
• Voltage type: Direct Current (DC)
• Mounting: Internal (within circuit breaker housing)
• Connection: Screw terminals
• Standards compliance: IEC 60947-2
• Operating temperature: -25°C to +70°C
• Storage temperature: -40°C to +85°C
• Degree of protection (installed): IP20

Our verdict

A dependable undervoltage release that adds essential protection to Hager h3+ breakers. Its 24 V DC operation and broad temperature tolerance make it suitable for demanding environments, while the simple internal mounting ensures a clean installation.
