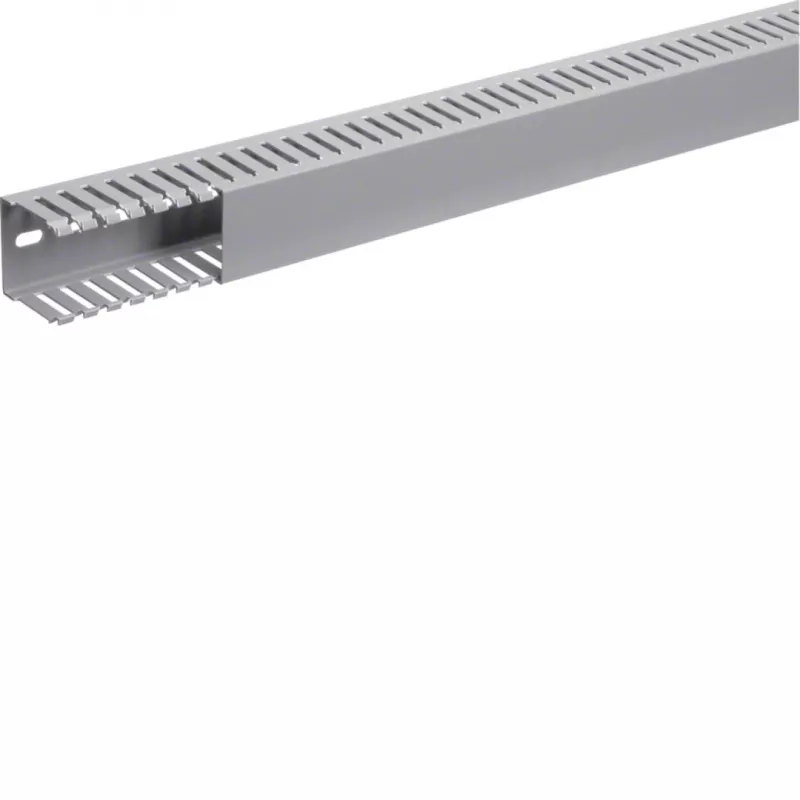

Hager DNG5005007030B canal de cableado 2m x 50mm x 50mm gris RAL 7030

PVC wiring duct for cable routing and protection in control cabinets and electrical installations, with a snap-on cover and slotted side walls for easy cable entry.

Advantages

Self-extinguishing PVC material ensures safety in electrical enclosures. The snap-on cover allows quick access for modifications, while the slotted design provides flexibility in cable management.

Suitable for

• Control cabinet wiring
• Electrical installation cable routing
• Industrial and commercial applications

Key specifications

• Length: 2000 mm
• Width: 50 mm
• Height: 50 mm
• Slot width: 4 mm
• Slot pitch: 6.5 mm
• Wall thickness: 1.5 mm
• Internal cross-sectional area: 2500 mm²
• Operating temperature: -5 °C to +60 °C
• Material: PVC, grey RAL 7030
• Mounting: screw mounting

Recommendations

Ideal for organized and safe cable management in electrical panels and control cabinets.
