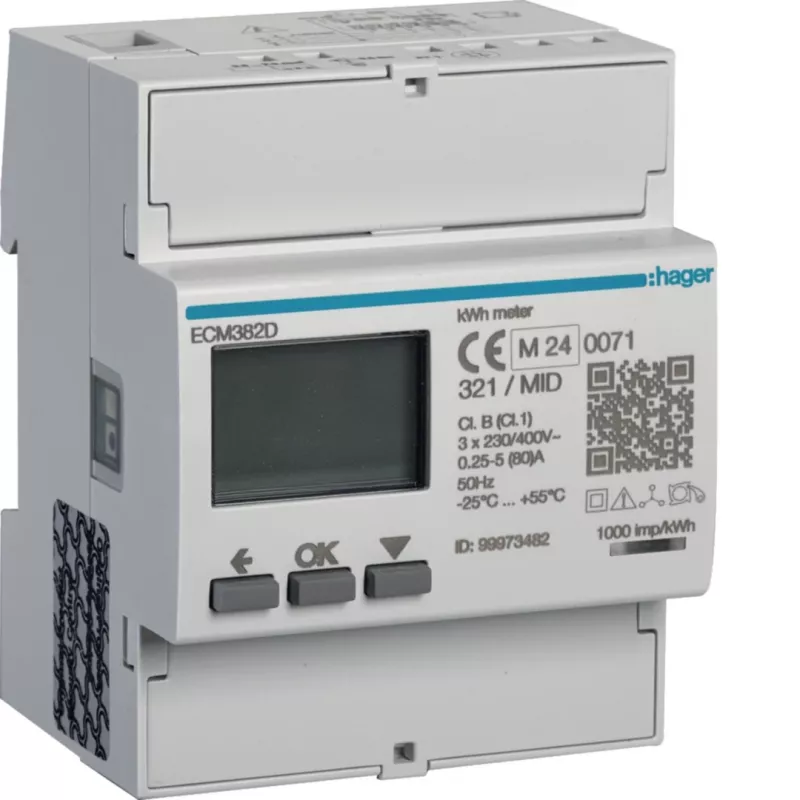

Hager ECM382D Contador de energía trifásico directo 80A 4M M-Bus MID

The Hager ECM382D is a high-precision 3-phase energy meter designed for direct connection up to 80A. It features M-Bus communication for remote reading and is MID certified for billing purposes. With a compact 4-module DIN rail design, it is ideal for commercial and industrial sub-metering applications.

Advantages

MID certified for legal metrology; M-Bus interface for easy integration into building management systems; direct measurement up to 80A without external transformers; clear LCD display with backlight; compact 4-module design saves space.

Suitable for

• Sub-metering in commercial buildings
• Industrial energy monitoring
• Multi-tenant billing applications
• Integration with M-Bus systems

Key specifications

• Measurement: Active and reactive energy (kWh, kvarh)
• Phase: 3-phase, direct connection
• Max current: 80 A
• Nominal voltage: 3x230/400 V AC
• Frequency: 50/60 Hz
• Accuracy class: B (EN 50470-3)
• Communication: M-Bus
• Display: LCD, 7-digit (6+1)
• Mounting: DIN rail, 4 modules
• Pulse output: 1x S0
• Protection: IP20
• Operating temperature: -25 to +55 °C

Recommendations

For optimal performance, use with Hager M-Bus data concentrators and ensure proper installation by a qualified electrician. This meter is suitable for direct metering of loads up to 80A without current transformers.
