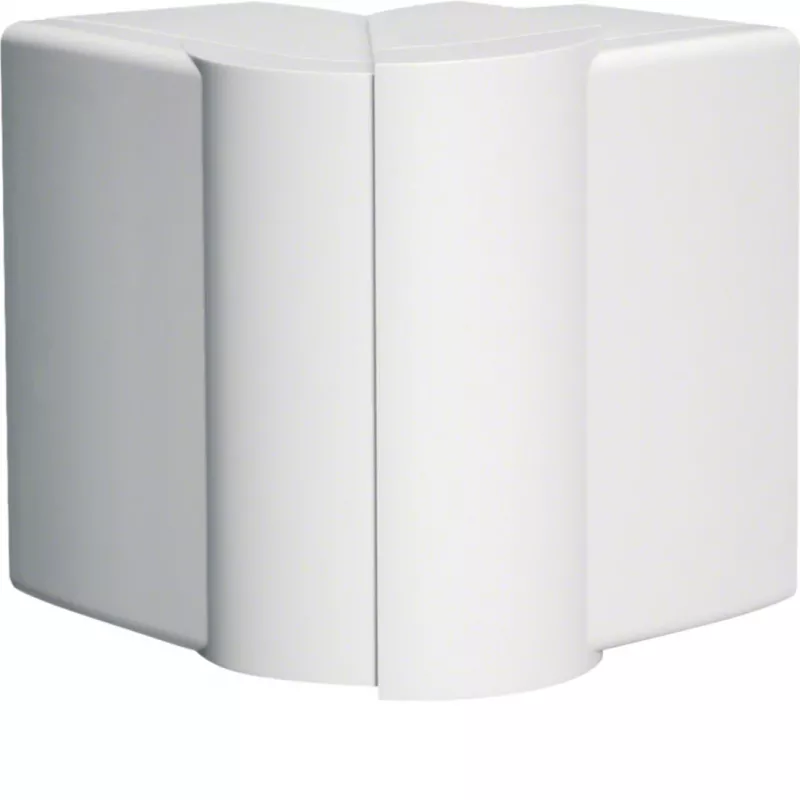

HAGER esquina exterior LFF6011039016 60x110mm blanco tráfico (RAL 9016)

When cable duct runs change direction, an open corner can leave cables exposed and create an unfinished look. The HAGER LFF6011039016 external corner solves this by providing a clean, protective transition for 60x110 mm cable ducts.

Who is it for

Electricians and installers working with OBO Bettermann LFF cable duct systems in indoor electrical installations.

Main features

• Compatible with 60x110 mm cable duct profile
• Snap-on mounting for quick installation
• Made of PVC, halogen-free and self-extinguishing
• UV-stabilized for long-term durability
• Traffic white (RAL 9016) finish
• Temperature resistance from -5°C to +60°C

Specifications

• Product type: External corner
• System compatibility: OBO Bettermann LFF cable duct system
• Compatible duct profile (H x W): 60 x 110 mm
• Material: Polyvinyl chloride (PVC)
• Colour: Traffic white (RAL 9016)
• Halogen-free: Yes
• Self-extinguishing: Yes
• UV-stabilized: Yes
• Mounting type: Snap-on / clip-on
• Temperature resistance: -5°C to +60°C
• Application: Cable routing and protection in indoor electrical installations
• Impact resistance: IK07
• Surface finish: Smooth
• Lead-free: Yes

Tips

Ensure the duct ends are cut square and free of burrs before snapping on the corner for a secure fit.
