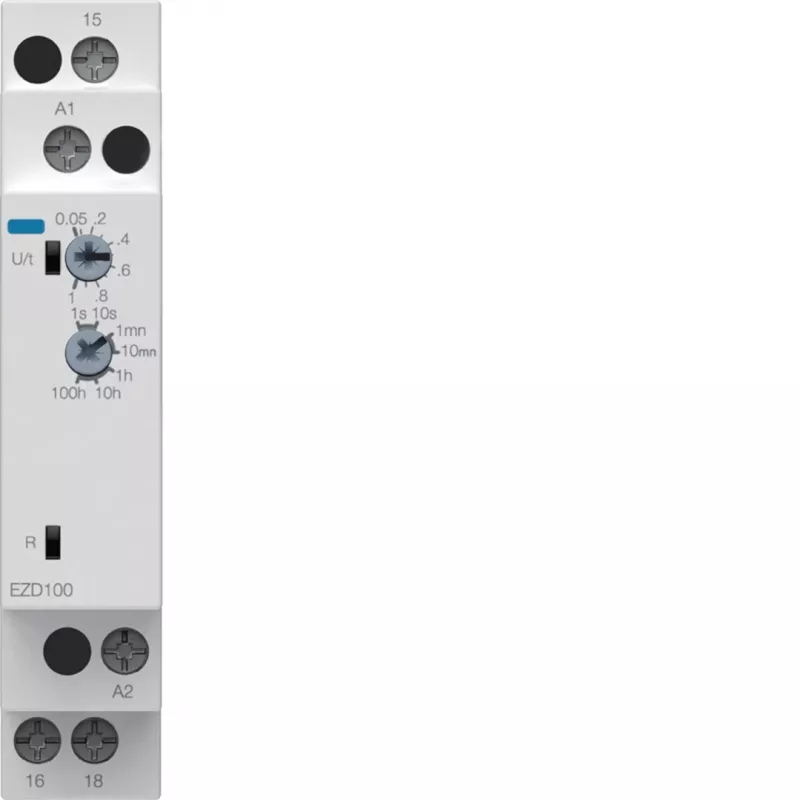

Hager EZD100 relé temporizador multifunción 24-240V AC/DC, 10 funciones, 1 contacto conmutado, carril DIN

With a wide 24-240V AC/DC supply range and 10 selectable timing functions, the Hager EZD100 time relay handles industrial and building automation tasks from 0.1 seconds to 100 hours.

Overview

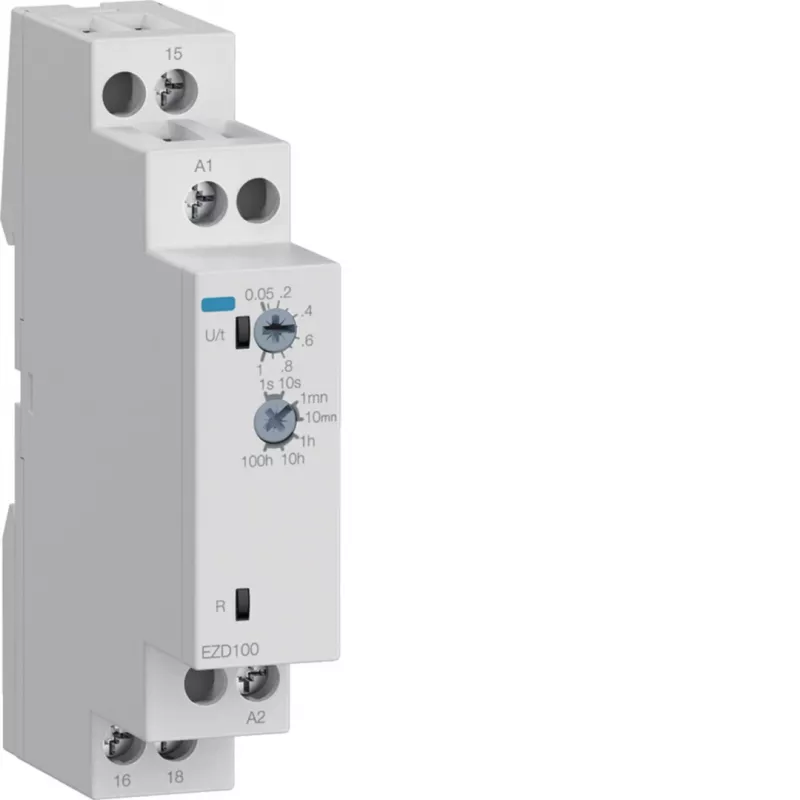

The EZD100 is a multifunction time relay for DIN rail mounting. It offers one potential-free changeover contact rated at 8 A / 250V AC. The front LED shows operating and relay status. Screw terminals accept flexible conductors up to 1.5 mm² and rigid conductors up to 2.5 mm².

What stands out

• Wide voltage range: 24-240V AC/DC
• 10 selectable timing functions
• Time setting from 0.1 s to 100 h
• 1 changeover contact (SPDT), potential-free
• Compact 1-module width (17.5 mm)
• LED status indication

Technical details

• Operating voltage: 24-240V AC/DC
• Number of functions: 10
• Time setting range: 0.1 s – 100 h
• Contact configuration: 1 CO (SPDT), potential-free
• Rated switching current: 8 A
• Rated switching voltage: 250V AC
• Mounting: DIN rail (EN 60715)
• Module width: 1 module (17.5 mm)
• Connection: screw terminals
• Terminal capacity: 1.5 mm² flexible / 2.5 mm² rigid
• Degree of protection: IP40 front / IP20 terminals
• Operating temperature: -20°C to +55°C
• Power consumption: 1.5 VA (AC) / 1.5 W (DC)
• LED indication: operating and relay status

Our verdict

A versatile and compact time relay that covers a broad voltage range and multiple timing functions, suitable for a wide range of control applications.
