Hager FWK-Plus conector de bandeja de cables 60x60 mm galvanizado FWKP600609VERZ - protección contra incendios

This Hager FWK-Plus coupling connects 60x60 mm cable trays with a galvanized steel construction, ensuring mechanical stability and electrical continuity. Certified for fire resistance classes E30, E60, and E90 according to DIN 4102-12, it maintains functional integrity of electrical systems during fire.

Overview

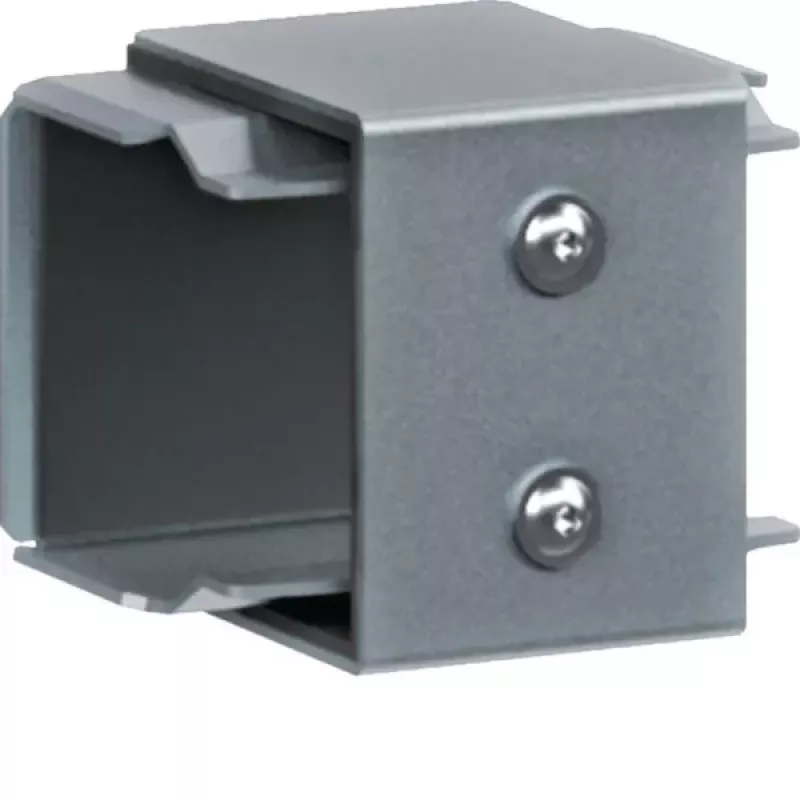

The FWKP600609VERZ is a straight-section coupling for Hager FWK-Plus cable tray systems. Made from galvanized steel, it provides corrosion protection and a metallic silver-grey finish. Installation is via screw connection, suitable for indoor, dry environments.

What stands out

• Fire resistance up to E90 per DIN 4102-12
• Galvanized steel for durability
• Compatible with 60x60 mm FWK-Plus trays
• Simple screw mounting

Technical details

• Product type: Cable tray coupling
• System series: Hager FWK-Plus
• Tray width compatibility: 60 mm
• Tray height compatibility: 60 mm
• Material: Steel
• Surface treatment: Galvanized
• Fire resistance class: E30, E60, E90 (DIN 4102-12)
• Application: Functional integrity of electrical systems during fire
• Installation: Connecting straight sections of FWK-Plus cable trays
• Mounting type: Screw connection
• Length: 120 mm
• Colour: Metallic (Silver-grey)
• Environmental suitability: Indoor, dry environments

Our verdict

A reliable fire-rated coupling for FWK-Plus cable tray installations, offering certified protection and easy installation.
