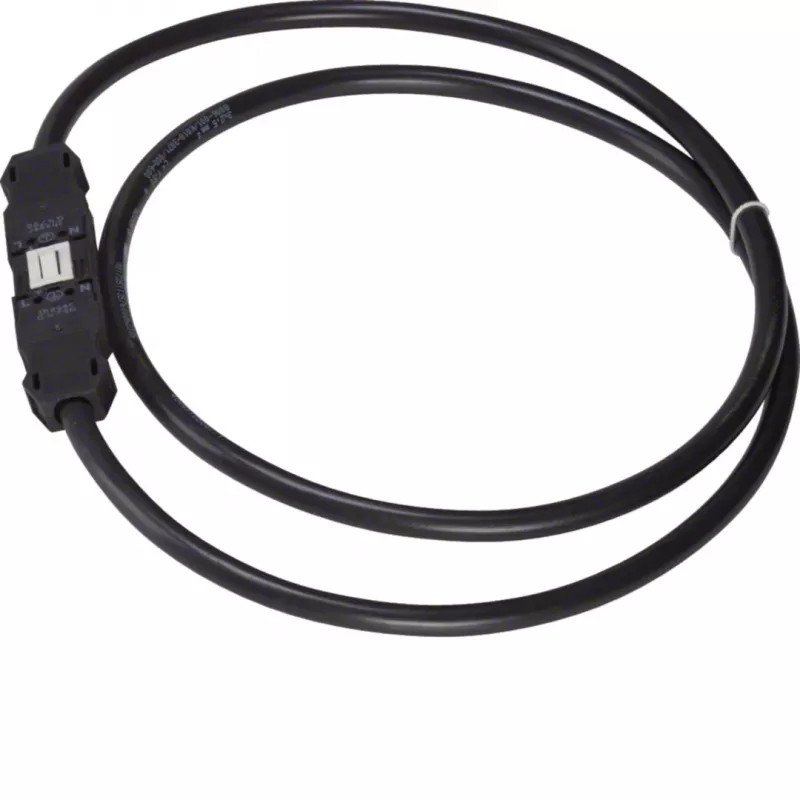

HAGER GKWAD03015 Cable de conexión Winsta MINI 3x2,5mm² 1,5m negro

Electricians and installers use the HAGER GKWAD03015 to make quick, tool-free connections in pluggable electrical installations. This 1.5 m connecting cable has three 2.5 mm² copper conductors and is compatible with WAGO Winsta MINI 770 series components.

Key specifications

• Cable type: Connecting cable
• Number of conductors: 3
• Conductor cross-section: 2.5 mm²
• Cable length: 1.5 m
• Cable colour: Black
• Connector 1: Winsta MINI male (plug)
• Connector 2: Winsta MINI female (socket)
• Rated voltage: 250 V (phase-to-earth) / 400 V (phase-to-phase)
• Rated current: 20 A
• Conductor material: Copper
• Jacket material: PVC
• Protection class (mated): IP20

Why choose it

This cable speeds up wiring by eliminating screw terminals. The Winsta MINI connectors lock securely, reducing installation errors and maintenance time.

Ideal use cases

• Connecting lighting fixtures and sensors in building automation
• Power distribution in modular electrical systems
• Quick replacement of faulty cable assemblies

Good to know

The cable is flexible and not halogen-free. It is rated for indoor use only due to IP20 protection.
