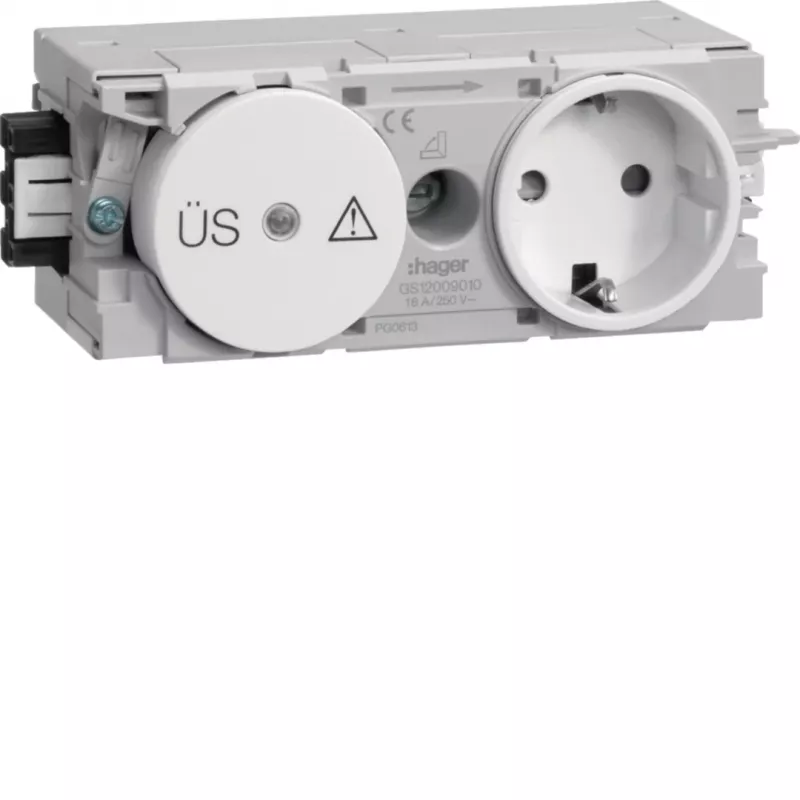

HAGER GS12009016 toma Schuko con protección fina, montaje perfil C, blanco tráfico

Integrated fine surge protection (Type 3) with a voltage protection level below 1.5 kV safeguards connected equipment from transient overvoltages. This 1-gang Schuko socket is rated for 250 V AC and 16 A, suitable for 50/60 Hz systems.

Overview

The HAGER GS12009016 combines a standard Schuko socket outlet with fine surge protection in a single unit designed for C-profile / cable trunking systems. Its traffic white (RAL 9010) thermoplastic housing is halogen-free and includes integrated child protection. Screw terminals ensure secure connections, and the module fits standard 45x45 mm cutouts.

What stands out

• Fine surge protection (Type 3) with nominal discharge current 1.5 kA (8/20 µs)
• Voltage protection level below 1.5 kV
• Integrated child protection for enhanced safety
• Halogen-free thermoplastic housing in traffic white
• Designed for C-profile / cable trunking mounting

Technical details

• Socket type: Schutzkontakt (Schuko)
• Number of sockets: 1-gang
• Rated voltage: 250 V AC
• Rated current: 16 A
• Frequency: 50/60 Hz
• Connection type: Screw terminals
• Protection class: IP20
• Overvoltage category: III
• Standards compliance: DIN VDE 0620-1, DIN VDE 0100-443, DIN VDE 0100-534

Our verdict

A reliable surge-protected socket for trunking installations, combining safety features with straightforward installation.
