Hager juego de cables de conexión para placa de montaje 1 fila 4 polos Y871DS1 16mm² abajo 1+2 derecha

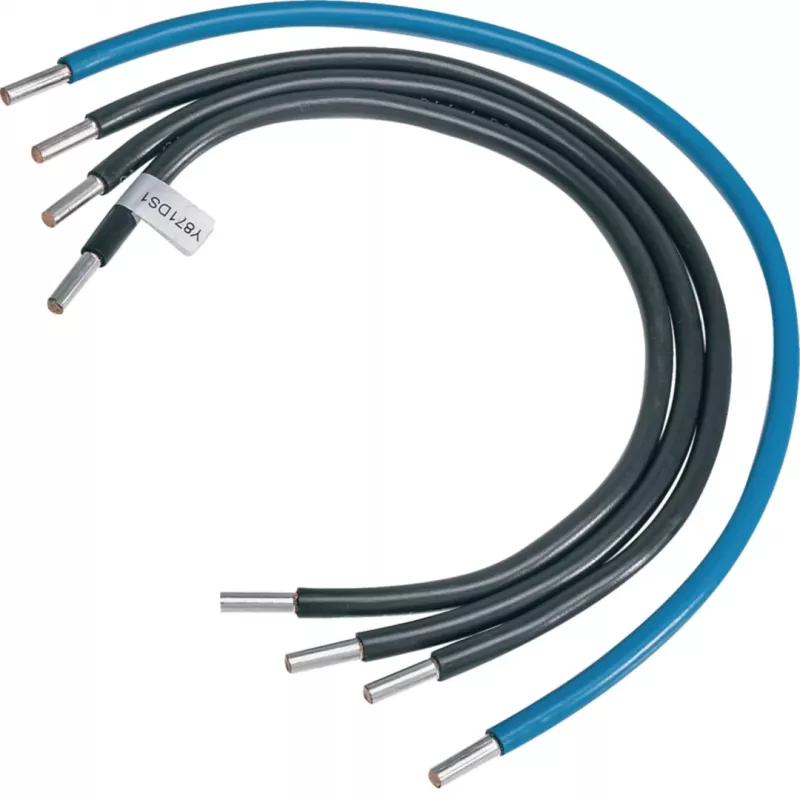

The Hager Y871DS1 Access Cable Harness is a pre-assembled, flexible connection cable set designed for 1-tier mounting plates in Hager distribution boards. It ensures reliable power distribution with a 4-pole configuration and a conductor cross-section of 16 mm², suitable for high-current applications up to 63 A.

Advantages

Pre-assembled for quick installation, reducing on-site labor. Flexible PVC-insulated copper conductors allow easy routing within the enclosure. Rated for 230/400 V AC with an insulation voltage of 690 V, ensuring safe operation in industrial and commercial environments.

Suitable for

• Hager distribution boards and mounting plates
• 1-tier mounting plate installations
• Bottom entry with connections at positions 1+2 right

Key specifications

• Product Type: Connection Cable Set
• Number of Poles: 4-pole
• Conductor Cross-section: 16 mm²
• Rated Current (In): 63 A
• Rated Operational Voltage (Ue): 230/400 V AC
• Insulation Voltage: 690 V
• Conductor Material: Copper
• Insulation Material: PVC
• Cable Type: Flexible Cable
• Pre-assembled: Yes
• Connection Side: Bottom
• Connection Position: 1+2 Right
• Standard Compliance: IEC, VDE

Recommendations

Ensure compatibility with your Hager distribution board model. Professional installation recommended.
