HAGER K96ESA1E borne de alimentación 1-25mm² 63A 400V gris

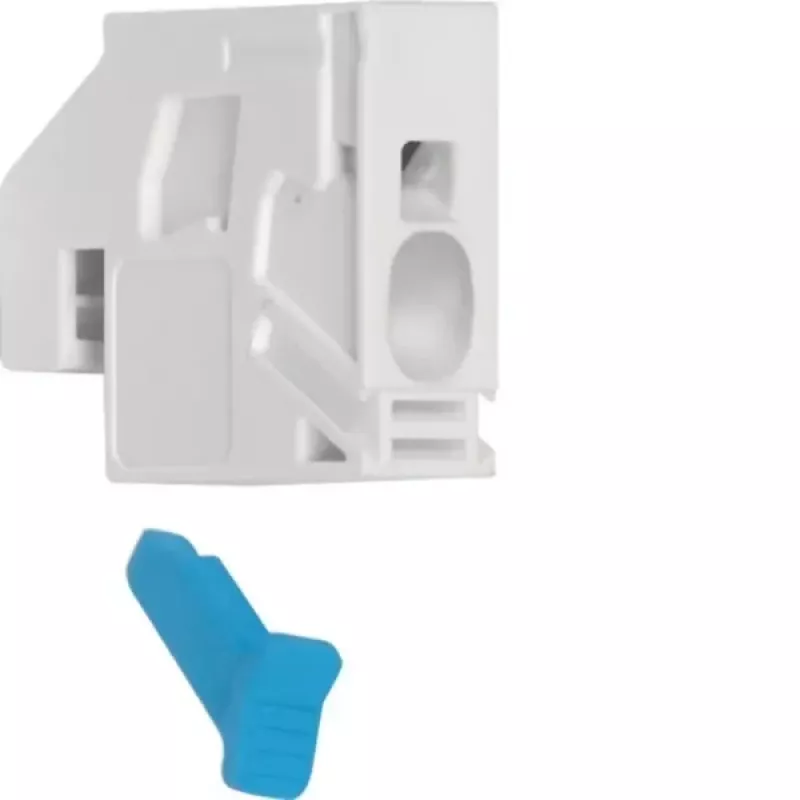

The HAGER K96ESA1E is a high-quality feed-in terminal block designed for main supply connections in distribution boards. It offers reliable and secure connections for conductors up to 25 mm², making it ideal for industrial and commercial electrical installations.

Advantages

This terminal block ensures safe and efficient power distribution with its robust screw terminal design. It is easy to install on standard DIN rails and provides a rated current of 63 A, suitable for demanding applications. The grey insulating plastic housing offers protection against accidental contact.

Suitable for

• Main supply connections in distribution boards
• Industrial control panels
• Commercial electrical systems
• DIN rail mounted terminal applications

Key specifications

• Product Type: Feed-in Terminal Block
• Number of Poles: 1-pole
• Connection Type: Screw Terminal
• Conductor Cross-Section (Rigid): 1 - 25 mm²
• Conductor Cross-Section (Flexible): 1 - 25 mm²
• Rated Current (In): 63 A
• Rated Voltage (Ue): 400 V AC
• Rated Impulse Withstand Voltage (Uimp): 4 kV
• Mounting Type: DIN Rail (35mm)
• Degree of Protection: IP20
• Housing Material: Insulating Plastic
• Conductor Material: Copper / Brass
• Colour: Grey
• Operating Temperature: -5 to 40 °C
• Standards: IEC/EN 60947-7-1
• Tightening Torque: 2.5 Nm

Recommendations

For optimal performance, use with appropriate copper conductors and ensure proper tightening torque. Suitable for use in distribution boards and control cabinets.
