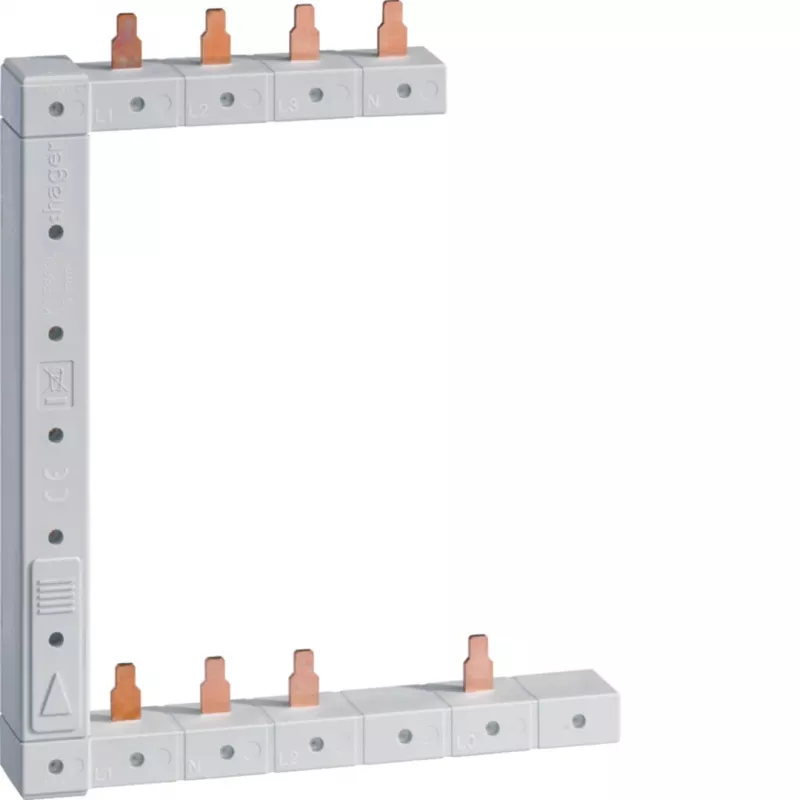

HAGER KCF863L barra de fases vertical izquierda 2 filas 3P+N 63A

In multi-row distribution boards, connecting the phase and neutral conductors between rows often requires additional wiring and increases the risk of errors. The HAGER KCF863L vertical phase busbar solves this by providing a ready-to-install, insulated connection for two rows of modular devices.

Who is it for

Electricians and panel builders who need a reliable, space-saving solution for linking two rows of 3-phase + neutral modular devices in distribution boards. It suits installations where a left-side vertical busbar is required.

Main features

• 2-row vertical phase busbar for left-side mounting.
• 3-phase + neutral (3P+N) configuration, 4 poles.
• Rated current 63 A, rated voltage 400 V AC.
• Pin-type connection for quick and secure installation.
• Insulated copper conductor, grey/black housing.

Specifications

• Type: Phase Busbar
• Configuration: 3-Phase + Neutral (3P+N)
• Number of Poles: 4
• Number of Rows: 2
• Mounting Orientation: Vertical, Left
• Rated Current: 63 A
• Rated Voltage: 400 V AC
• Rated Short-Circuit Withstand Current: 10 kA
• Connection Type: Pin Type
• Conductor Material: Copper
• Insulation: Insulated
• Colour: Grey/Black

Tips

Ensure the busbar is compatible with your distribution board's busbar support and device pitch. Always de-energize the installation before mounting.
