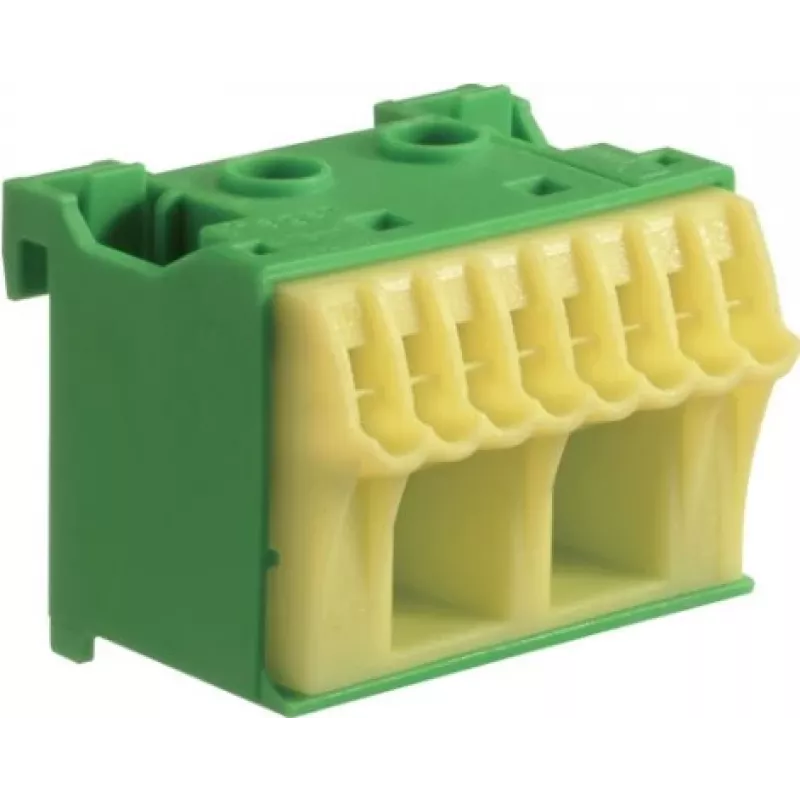

Hager KN10E Bloque de terminales PE QuickConnect, 10 puntos de conexión, verde/amarillo

This Hager KN10E QuickConnect PE terminal block provides 10 protective earth clamping points with push-in connection technology, enabling fast and tool-free wiring for DIN rail installations. Its green/yellow housing clearly identifies PE function for safe and compliant electrical distribution.

Advantages

The QuickConnect push-in terminals accept rigid conductors from 0.5 to 16 mm² and flexible conductors from 0.5 to 10 mm², reducing installation time. The compact design saves space on the DIN rail while the high current rating of 76 A and rated voltage of 1000 V support demanding applications. The polyamide insulation is flame-retardant to UL94 V-0 and operates from -25 to +100 °C, ensuring durability in harsh environments.

Suitable for

• Protective earth distribution in industrial control panels
• Building electrical installations requiring PE terminal blocks
• DIN rail assemblies with mixed conductor sizes

Key specifications

• Number of clamping points: 10
• Connection type: QuickConnect (push-in)
• Mounting: DIN rail TS35
• Rated current: 76 A
• Rated voltage: 1000 V
• Conductor cross-section: 0.5–16 mm² rigid, 0.5–10 mm² flexible
• Stripping length: 10–12 mm
• Pollution degree: 3
• Standard compliance: IEC 60947-7-2

Recommendations

For reliable PE connections with quick wiring, the Hager KN10E is an excellent choice for panel builders and electricians seeking efficiency and safety.
