HAGER LF3004569016 tapa final blanco tráfico 30x45mm

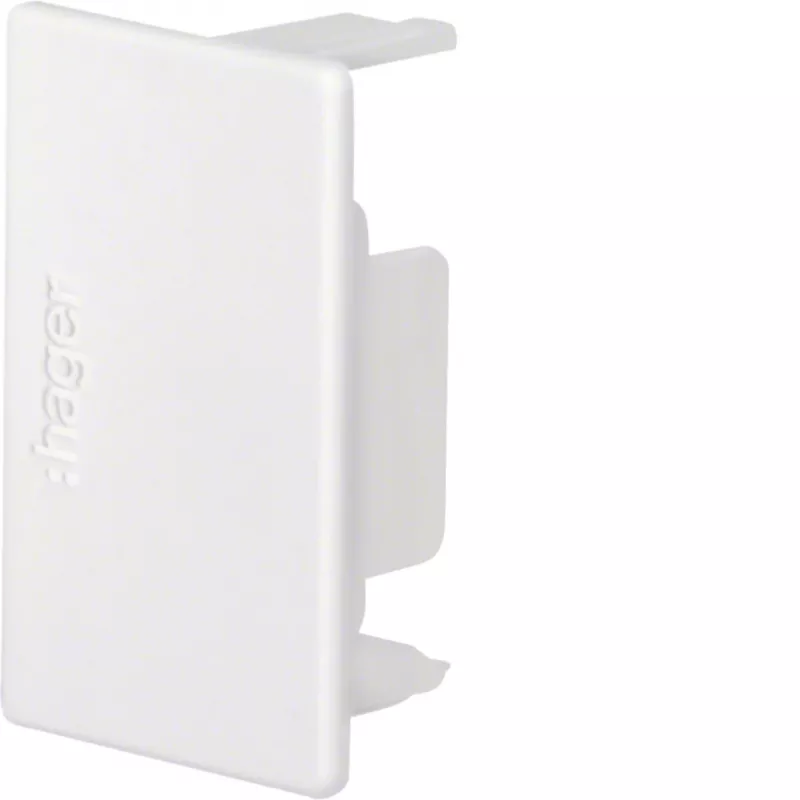

The HAGER LF3004569016 End Cap is a high-quality accessory designed for the Hager Tehalit LF series of cable trunking. It provides a neat and professional finish by sealing the open ends of trunking runs, ensuring safety and aesthetic appeal in electrical installations.

Advantages

This end cap offers tool-free snap-on installation, saving time and effort. Its traffic white (RAL 9016) color matches standard trunking, providing a seamless look. Made from durable PVC, it is impact-resistant (IK07) and withstands glow-wire tests up to 850°C, ensuring long-lasting performance.

Suitable for

• Finishing and sealing open ends of Hager Tehalit LF cable trunking (30x45mm)
• Indoor electrical installations in commercial, industrial, and residential buildings
• Use with trunking systems requiring a clean, professional appearance

Key specifications

• Product Type: End Cap / End Piece
• Compatible Trunking Dimensions (W x H): 30 x 45 mm
• Color: Traffic White (RAL 9016)
• Material: PVC (Polyvinyl chloride)
• Mounting Type: Snap-on / Clip-on
• Quantity per Pack: 1 piece
• Protection Class: IP30 (when installed correctly)
• Impact Resistance: IK07
• Glow-wire Test: 850 °C
• Operating Temperature Range: -5 °C to +60 °C
• Surface Finish: Matt
• Halogen-free: No
• UV-resistant: No (indoor use only)

Recommendations

For best results, use with Hager Tehalit LF trunking and ensure proper installation to maintain IP30 protection. Ideal for new installations or retrofitting existing trunking systems.
