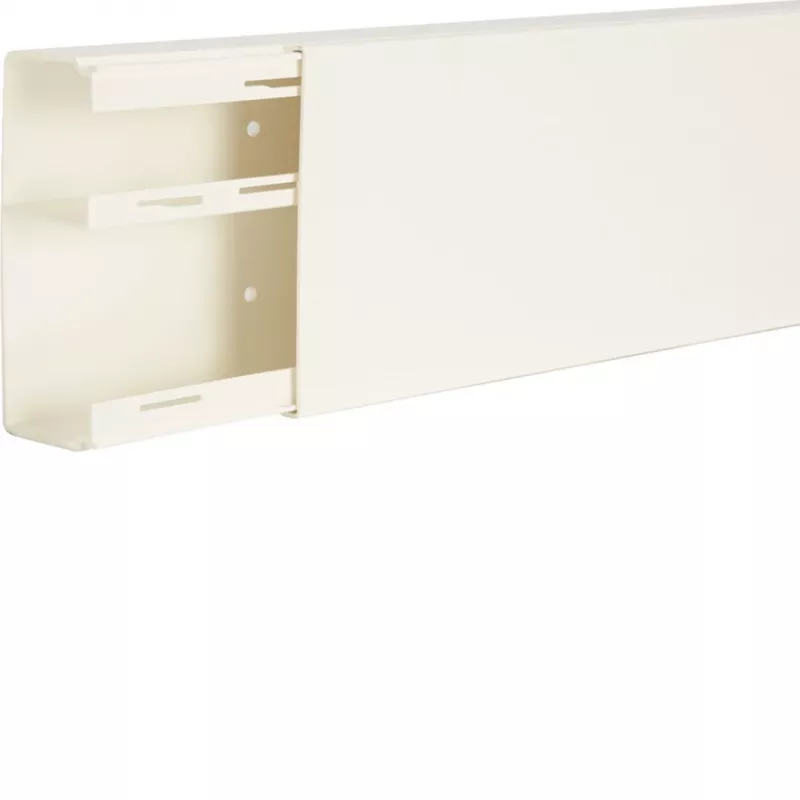

Hager LF6015109016 Canal de cables LF 60x150 mm blanco tráfico RAL 9016, 2 m, PVC, 1 compartimento

Managing cables along walls or ceilings can quickly become a mess of exposed wires and safety hazards. The Hager LF6015109016 cable trunking provides a clean, protected pathway for your electrical installations, keeping cables organized and out of sight.

Who is it for

Electricians, facility managers, and DIY enthusiasts who need a reliable, easy-to-install solution for routing cables in residential, commercial, or light industrial settings. It is ideal for surface mounting on walls or ceilings where concealed wiring is not practical.

Main features

• Dimensions: 60 mm height x 150 mm width, providing ample space for multiple cables.
• Length: 2000 mm (2 meters) per section, reducing the number of joints needed.
• Material: Durable PVC (polyvinyl chloride) in traffic white (RAL 9016) for a clean, professional look.
• Single compartment design with a snap-on lid for easy cable insertion and access.
• Base perforation for quick and secure screw mounting.
• Complies with EN 50085-2-1 for cable trunking systems.

Specifications

• Colour: Traffic White (RAL 9016)
• Material: PVC
• Width: 150 mm
• Height: 60 mm
• Length: 2000 mm
• Number of compartments: 1
• With lid: Yes
• Mounting type: Wall/Ceiling
• Halogen-free: No
• Temperature range: -5 to +60 °C
• Impact resistance: IK07
• Flammability class: UL94 V-0
• Suitable for functional integrity: No
• Suitable for outdoor use: No

Tips

When cutting the trunking to length, use a fine-toothed saw to achieve clean edges. For a neat finish, install the lid after all cables are in place and use a rubber mallet to snap it securely. Always de-energize circuits before working near live wires.
