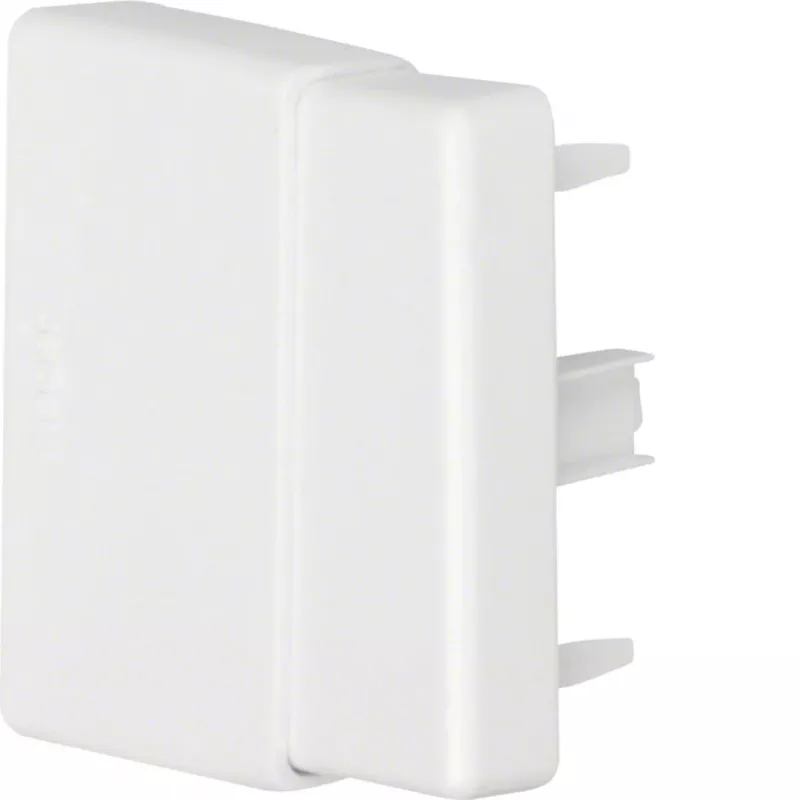

Hager LFF6006069016 pieza final ajustable blanco tráfico (RAL 9016) para canaleta 60x60mm

The Hager LFF6006069016 is a high-quality adjustable end piece designed for use with Hager tehalit.LFF cable trunking systems. Manufactured from durable PVC, this end cap provides a neat and professional finish to cable routing installations. Its traffic white (RAL 9016) colour ensures a clean, uniform appearance in indoor environments.

Advantages

Adjustable design allows for flexible installation and alignment. Snap-on mounting ensures quick and tool-free attachment. Self-extinguishing material enhances safety in electrical installations.

Suitable for

• Finishing the ends of Hager tehalit.LFF 60x60mm trunking runs
• Indoor cable management in commercial, industrial, and residential settings
• Creating a clean, closed end to protect cables and improve aesthetics

Key specifications

• Product Type: End Piece / End Cap
• System Series: Hager tehalit.LFF
• Compatible Trunking Dimensions (W x H): 60 x 60 mm
• Material: PVC (Polyvinyl Chloride)
• Colour: Traffic White (RAL 9016)
• Adjustability: Adjustable
• Mounting Type: Snap-on / Clip-on
• Halogen-free: No
• Self-extinguishing: Yes (according to EN 50085-1)
• Operating Temperature Range: -5 to +60 °C
• UV Resistance: No (for indoor use)
• Protection Class (IP): IP30 (when installed with compatible trunking)
• Impact Resistance (IK): IK07 (when installed with compatible trunking)
• Standard Compliance: EN 50085-1
• Application: Cable routing and protection in electrical installations
• Quantity per Pack: 1 piece

Recommendations

For best results, use with Hager tehalit.LFF 60x60mm trunking and compatible accessories. Ensure proper installation to maintain IP30 and IK07 ratings. Suitable for indoor use only.
