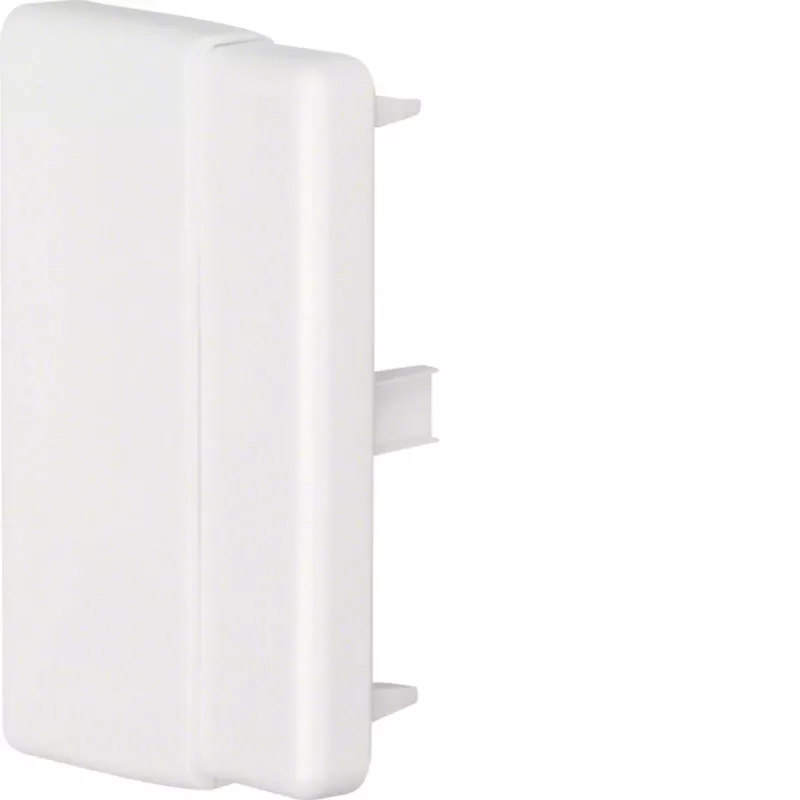

HAGER LFF6009069016 pieza final ajustable para canal de cables 60x90 mm, blanco tráfico (RAL 9016)

Clip-on adjustable end piece for Hager tehalit.LFF cable trunking, sized for 60 x 90 mm profiles. Made from halogen-free, UV-resistant PVC in traffic white (RAL 9016).

Overview

The HAGER LFF6009069016 is an adjustable end piece designed to close off the open ends of 60 x 90 mm cable trunking sections. Its clip-on mounting allows quick installation without tools, and the adjustable design ensures a precise fit even when trunking is cut to length. The traffic white finish matches standard trunking components for a clean, professional appearance.

What stands out

• Adjustable design accommodates minor length variations
• Halogen-free PVC material for enhanced safety in fire conditions
• UV-resistant, suitable for areas exposed to sunlight
• Self-extinguishing according to EN 50085-1
• Clip-on mounting for fast, tool-free installation

Technical details

• Product type: End piece
• System: Hager tehalit.LFF cable trunking
• Compatible trunking dimensions: 60 x 90 mm
• Material: PVC (polyvinyl chloride)
• Colour: Traffic white (RAL 9016)
• Mounting type: Clip-on / snap-on
• Halogen-free: Yes
• UV-resistant: Yes
• Operating temperature range: -5°C to +60°C
• Protection class: IP30
• Fire behaviour: Self-extinguishing according to EN 50085-1
• Standards: EN 50085-1, EN 50085-2-1
• Surface finish: Smooth
• Quantity per pack: 1 piece

Our verdict

A reliable and practical finishing component for Hager trunking systems, offering easy installation and a clean look.
