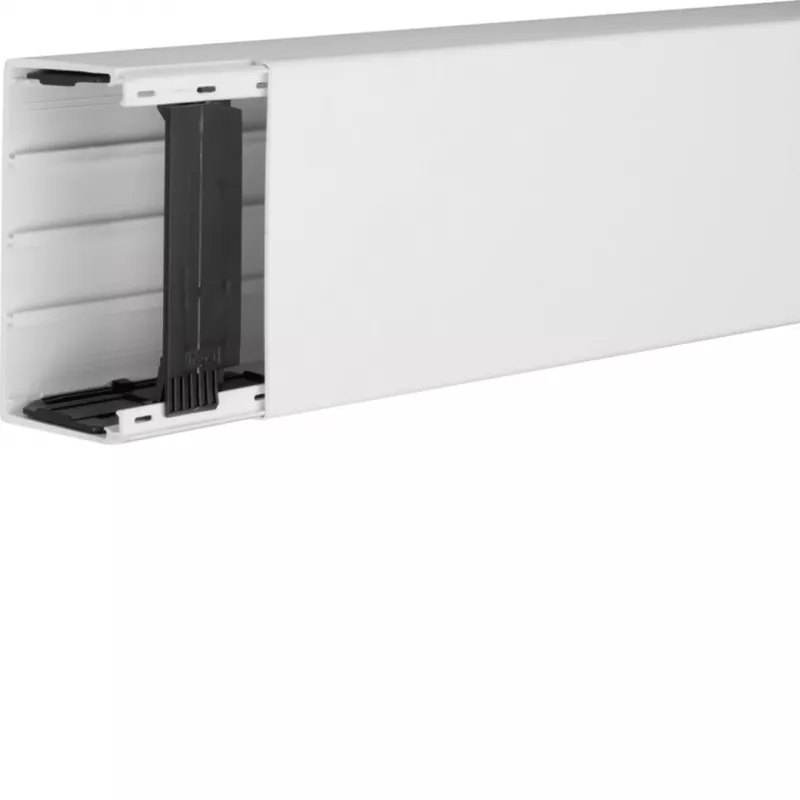

Hager LFH6011009016 Canal de cables PC/ABS 110x60 mm 2 m blanco tráfico RAL 9016

Electricians and network installers routing power and data cables along walls or ceilings in commercial and residential buildings will find this Hager LFH series trunking a practical solution. Its single compartment accommodates a mix of cables, while the snap-on cover allows quick access for changes or additions.

Key specifications

• Material: PC/ABS (polycarbonate/acrylonitrile butadiene styrene)
• Dimensions (W x H): 110 mm x 60 mm
• Length: 2000 mm (2 m)
• Colour: Traffic white (RAL 9016)
• Number of compartments: 1
• Halogen-free
• Operating temperature: -5 °C to +60 °C
• Mounting type: Wall / ceiling
• Cover type: Snap-on
• Base perforation: Yes
• UV resistant
• Self-extinguishing

Why choose it

The PC/ABS blend offers a balance of rigidity and impact resistance, making the trunking durable during installation and use. The halogen-free formulation means it does not release corrosive gases in the event of fire, and the snap-on cover speeds up both initial fitting and later cable maintenance. Its 2-metre length reduces the number of joints needed on long runs.

Ideal use cases

• Routing power cables to sockets and switches in offices, schools, and hospitals
• Managing data and communication cables in server rooms and network closets
• Concealing cables along walls or ceilings in residential renovations
• Creating neat, accessible cable runs in workshops and industrial control panels

Good to know

The trunking is designed for indoor use and can be mounted on walls or ceilings. Its base is perforated for easy fixing, and the cover simply snaps into place. The traffic white colour blends with most interior décors and can be painted if required.
