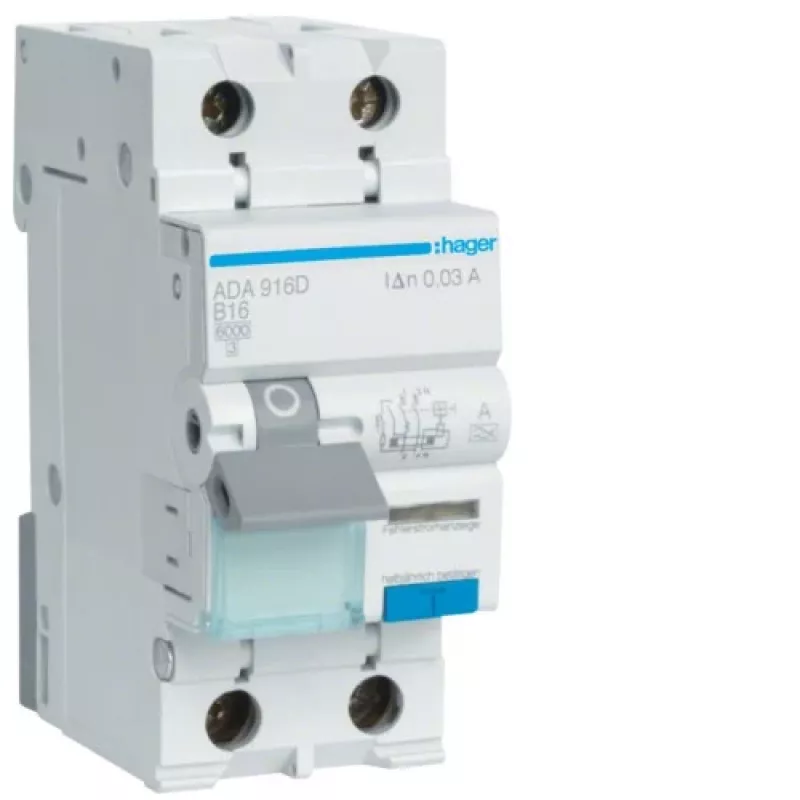

HAGER RCBO 1P+N 6kA B 16A/30mA Tipo A ADA916D

The HAGER ADA916D is a high-quality Residual Current Circuit Breaker with Overcurrent Protection (RCBO) designed for reliable protection against electrical faults. This 1P+N device combines overcurrent and residual current protection in a single compact unit, saving space in your distribution board. With a rated current of 16A and a residual operating current of 30mA, it is ideal for protecting circuits in residential and commercial installations.

Advantages

Combines overcurrent and residual current protection in one device, reducing installation time and space requirements. Type A sensitivity ensures protection against AC and pulsating DC fault currents. The B tripping curve provides fast response to short circuits while allowing for inrush currents. Easy DIN rail mounting and screw terminals for secure wiring.

Suitable for

• Residential electrical circuits requiring both overcurrent and residual current protection
• Commercial buildings where space is limited
• Circuits with electronic loads that may produce pulsating DC fault currents

Key specifications

• Product Type: RCBO (Residual Current Circuit Breaker with Overcurrent Protection)
• Number of Poles: 1P+N
• Rated Current (In): 16 A
• Rated Residual Operating Current (IΔn): 30 mA
• Tripping Curve: B
• Short-Circuit Breaking Capacity (Icn): 6 kA
• Ultimate Breaking Capacity (Icu): 10 kA
• Residual Current Type: Type A
• Rated Voltage (Un): 230 V AC
• Frequency: 50/60 Hz
• Mounting Type: DIN Rail
• Module Width: 2 Modules (35.5 mm)
• Degree of Protection: IP20
• Operating Temperature: -25°C to +60°C
• Terminal Capacity (Rigid): 25 mm²
• Terminal Capacity (Flexible): 16 mm²
• Standard Compliance: IEC/EN 61009-1
• Rated Impulse Withstand Voltage (Uimp): 4 kV

Recommendations

For optimal protection, ensure that the RCBO is installed by a qualified electrician and that the circuit parameters match the device ratings. Regular testing of the residual current function is recommended.
