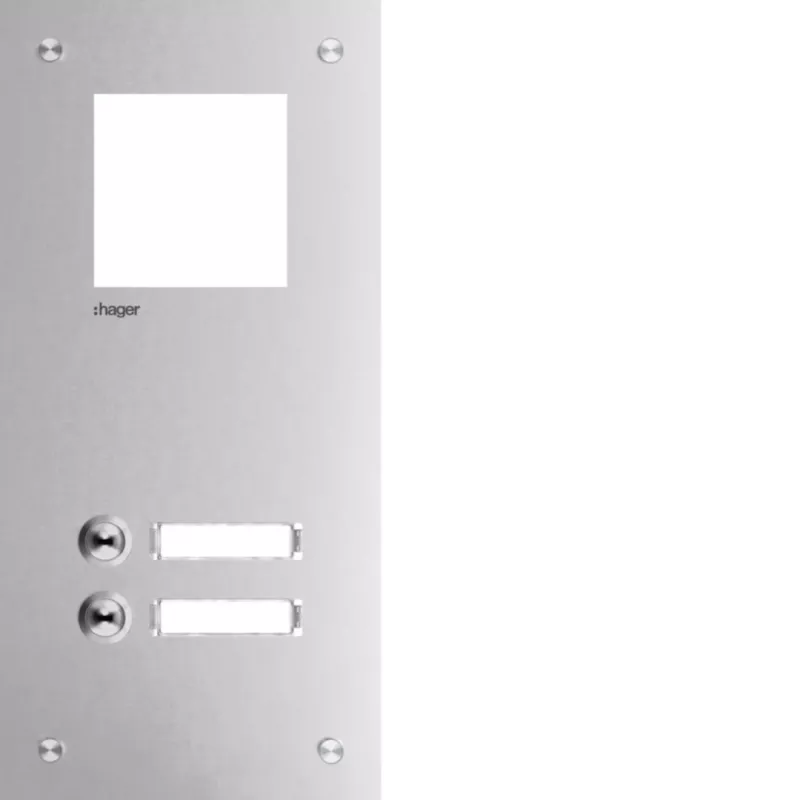

Hager RTQ102X Placa frontal para portero automático, mono, 2 pulsadores de llamada, aluminio

The Hager RTQ102X is a front plate for door stations in 2-wire intercom systems, featuring two call buttons with white LED backlighting and illuminated, replaceable nameplates. Its anodized aluminum construction with brushed finish offers high vandal resistance for outdoor use.

Advantages

Durable anodized aluminum with IK07 impact protection and IP44 rating when installed with compatible housing. Backlit buttons ensure visibility at night, and the replaceable nameplates allow easy customization for different tenants.

Suitable for

• Residential buildings with two apartments or offices
• Outdoor installation in flush-mounted or surface-mounted Hager housings (e.g., RTQ100U, RTQ100A)
• Hager 2-wire intercom systems

Key specifications

• Product type: Front plate for door station
• System type: 2-wire bus system
• Number of call buttons: 2
• Material: Anodized aluminum
• Colour: Aluminum
• Button backlighting: Yes (white LED)
• Nameplate: Illuminated, replaceable
• Operating temperature: -25 to +55 °C
• Dimensions (H x W x D): 200 x 120 x 2 mm

Recommendations

Pair with Hager RTQ100U or RTQ100A housing for a complete outdoor door station. Verify compatibility with your existing 2-wire intercom system before installation.
