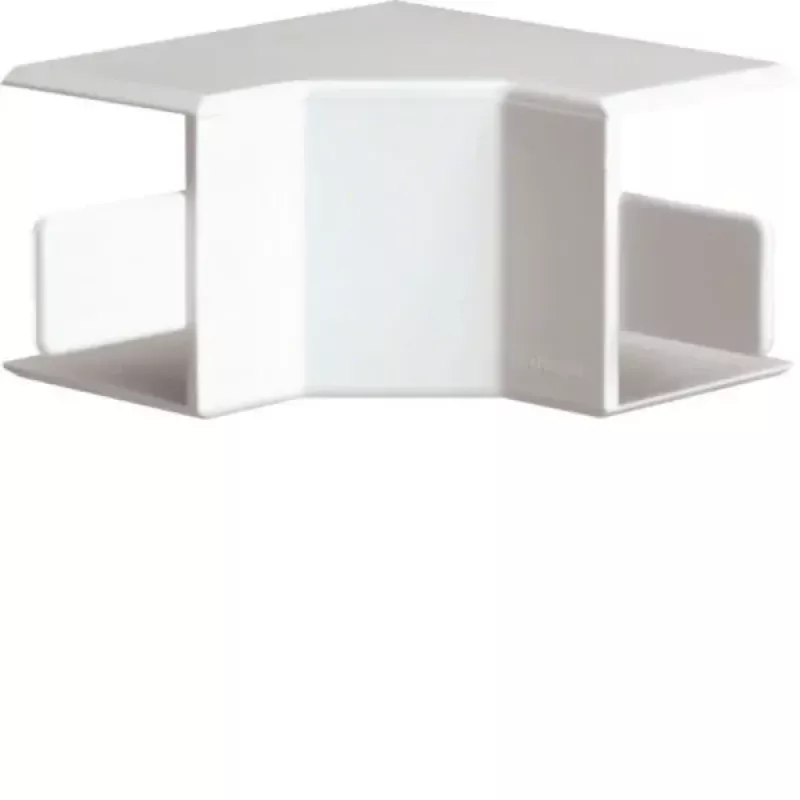

HAGER Tapa de esquina interior LFF2003549016hfr ABS para LF/LFF 20x33 mm blanco tráfico (RAL 9016)

Concealing cables at inner corners in cable trunking systems can be tricky, often leaving unsightly gaps or exposed wires. The HAGER LFF2003549016hfr inner corner cover solves this by providing a clean, snap-on cover for 33x20 mm LF/LFF trunking, ensuring a neat and professional finish.

Who is it for

Electricians, network installers, and facility managers who need to route cables around internal corners in offices, commercial buildings, or industrial settings. It is ideal for anyone using OBO Bettermann LF/LFF trunking and seeking a halogen-free, fire-safe solution.

Main features

• Snap-on mounting for quick and secure installation without tools
• Made from halogen-free ABS, reducing toxic smoke in case of fire
• Traffic white (RAL 9016) colour matches standard trunking for a seamless look
• UV resistant and suitable for temperatures from -25°C to +60°C
• Self-extinguishing material enhances fire safety

Specifications

• Product type: Inner corner cover
• Compatible trunking dimensions (W x H): 33 x 20 mm
• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Traffic white (RAL 9016)
• Halogen-free: Yes
• Mounting method: Snap-on / clip-on
• UV resistance: Yes
• Temperature resistance: -25°C to +60°C
• Fire behaviour: Self-extinguishing
• RoHS compliant: Yes
• REACH compliant: Yes

Tips

For a consistent appearance, use this cover with HAGER or OBO Bettermann LF/LFF trunking in traffic white. Ensure the trunking is clean and dry before snapping the cover into place.
