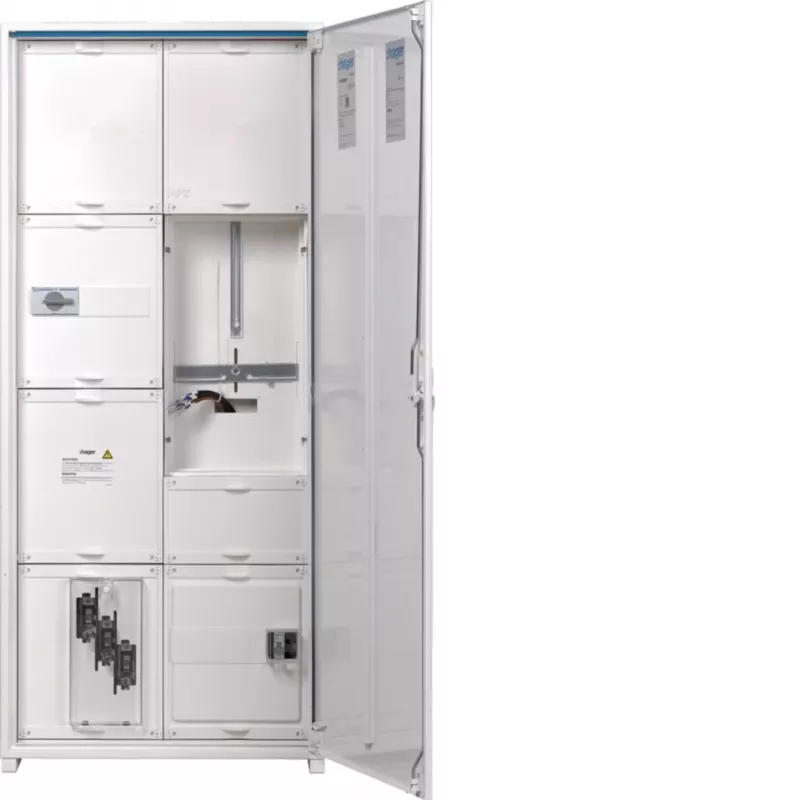

Hager universN FP82W5N Armario de transformador/contador 1250x550x205mm 1 campo de contador APZ NAR NH00 SUT

Electricians and facility managers rely on the Hager universN FP82W5N to centralize metering and transformer connections in multi-tenant residential and commercial buildings. This surface-mounted cabinet combines a pre-wired meter field, additional device compartment, and network connection space in one robust sheet steel enclosure.

Key specifications

• Series: universN
• Number of meter fields: 1 (BKE-I mounting plate for eHZ meters)
• Additional device compartment (APZ): Yes
• Network connection compartment (NAR): Yes
• Main fuse type: NH00
• Protection class: IP54
• Material: Sheet steel
• Mounting type: Surface-mounted
• Rated current (max.): 250 A
• Number of transformer fields: 1
• Door type: Single door with double-bit lock
• Colour: RAL 7035 (Light Grey)
• Cable entry: Top, bottom, and side (pre-punched)
• Standards: DIN VDE 0603-1, DIN 43870-1
• Internal distribution rows: 5 (for distribution field)

Why choose it

The FP82W5N streamlines installation with pre-punched cable entries and a pre-configured meter field, reducing on-site labour. Its IP54-rated enclosure protects against dust and water splashes, ensuring long-term reliability in utility rooms or basements. The double-bit lock secures access, while the NH00 fuse holder allows safe and quick fuse replacement.

Ideal use cases

• Transformer and metering installations in commercial buildings
• Residential multi-unit buildings with centralized metering
• Industrial applications requiring robust metering cabinets
• Integration into existing universN system installations

Good to know

Compliant with DIN VDE 0603-1 and DIN 43870-1, this cabinet meets German installation standards for meter panels. It is part of the modular universN range, allowing easy expansion with compatible components.
