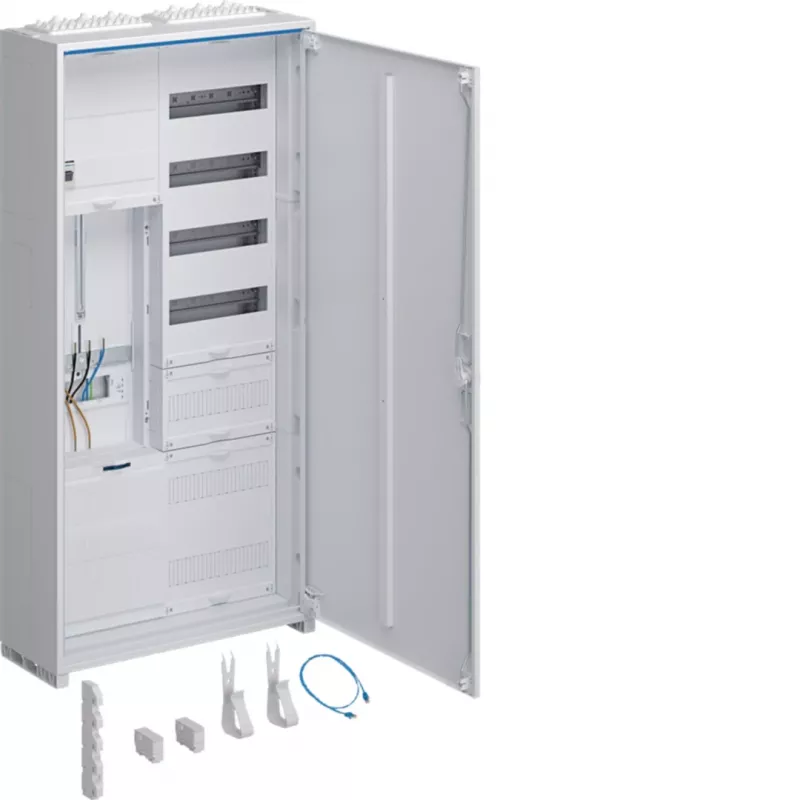

Hager universZ armario de contadores completo ZB323Q15ENT, 3 puntos, 1 campo de contador, APZ, Rfz, 1100x550x205 mm, blanco

Electrical installations in residential and commercial buildings require a central point where the utility feed, metering equipment, and distribution circuits come together safely and in compliance with VDE-AR-N 4100. This Hager universZ complete meter cabinet provides that point in a single, factory-assembled enclosure.

Who is it for

Electricians and panel builders who need a ready-to-install meter cabinet for a three-phase supply with one metering point, including the mandatory connection space for additional applications (APZ) and space for additional applications (Rfz). It is intended for surface mounting or partially recessed installation in dry indoor locations.

Main features

• Complete cabinet with one 3-point metering field, APZ and Rfz integrated.
• Three distribution rows, each with 12 modules (36 modules total) for circuit breakers and other devices.
• 5-pole busbar system rated 63 A for reliable power distribution.
• Sheet steel enclosure with opaque door, RAL 9010 white finish.
• Pre-punched cable entries on top, bottom and sides for flexible wiring.
• Protection class IP44 and IK07.

Specifications

• Series: universZ
• Product type: Complete meter cabinet
• Number of metering fields: 1
• Number of phases: 3
• APZ: Integrated
• Rfz: Integrated
• Mounting type: Surface-mounted / partially recessed
• Material: Sheet steel
• Protection class: IP44
• IK rating: IK07
• Distribution rows: 3
• Modules per row: 12
• Total modules: 36
• Door type: Opaque steel door
• Rated voltage: 230/400 V AC
• Rated current (busbar): 63 A
• Colour: RAL 9010 (white)
• Standards: DIN VDE 0603-1, VDE-AR-N 4100
• Cable entry: Top, bottom, side (pre-punched)
• Busbar system: 5-pole
• Dimensions (H x W x D): 1100 x 550 x 205 mm

Tips

Verify the local utility requirements for meter cabinet placement and sealing before installation. The cabinet is designed for indoor use; for outdoor or damp locations, consider an additional enclosure or consult Hager's weatherproof range.
