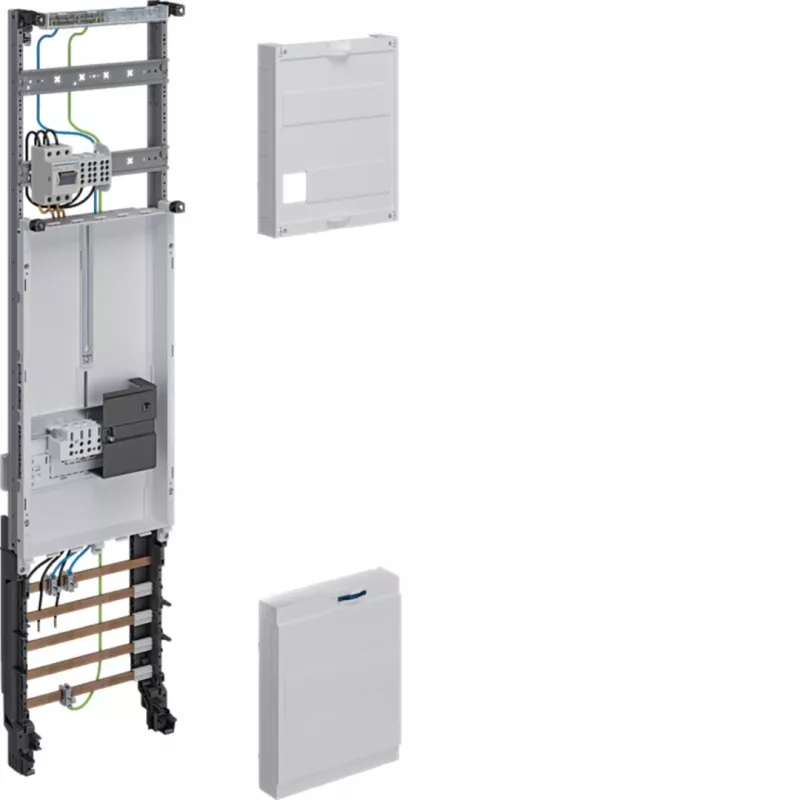

Hager universZ campo completo ZH33W7NT, trifásico, 1 emplazamiento de contador, 10 mm², 1050x250 mm

In residential and commercial electrical installations, the metering section must combine safety, accessibility, and compliance. The Hager universZ Complete Field ZH33W7NT solves this by providing a pre-assembled, ready-to-wire metering unit for a single 3-phase meter with an integrated disconnecting function.

Who is it for

Electricians and panel builders who need a reliable, standard-compliant metering field for distribution boards. It suits projects requiring a single meter point with a main switch, without the need to assemble individual components.

Main features

• Complete field for one 3-phase meter place
• Integrated main switch for safe disconnection
• 10 mm² main conductor cross-section, rated current 63 A
• 5-pole busbar system with QuickConnect terminals
• Dimensions: 1050 mm height, 250 mm width, 135 mm depth
• Steel sheet and plastic construction, IP2XC protection

Specifications

• Series: universZ
• Number of meter places: 1
• Number of phases: 3-phase
• Main conductor cross-section: 10 mm²
• Rated current: 63 A
• Disconnecting function: Integrated main switch
• Mounting type: For meter cabinets / distribution boards
• Busbar system: 5-pole
• Connection technology: QuickConnect
• Available distribution units (top): 12 TE
• Protection class: IP2XC
• Material: Steel sheet / Plastic
• Application: Residential and commercial metering
• Standards: DIN VDE

Tips

Verify the available space in your distribution board before installation. The field is designed for standard meter cabinets; ensure compatibility with your meter type and sealing requirements.
