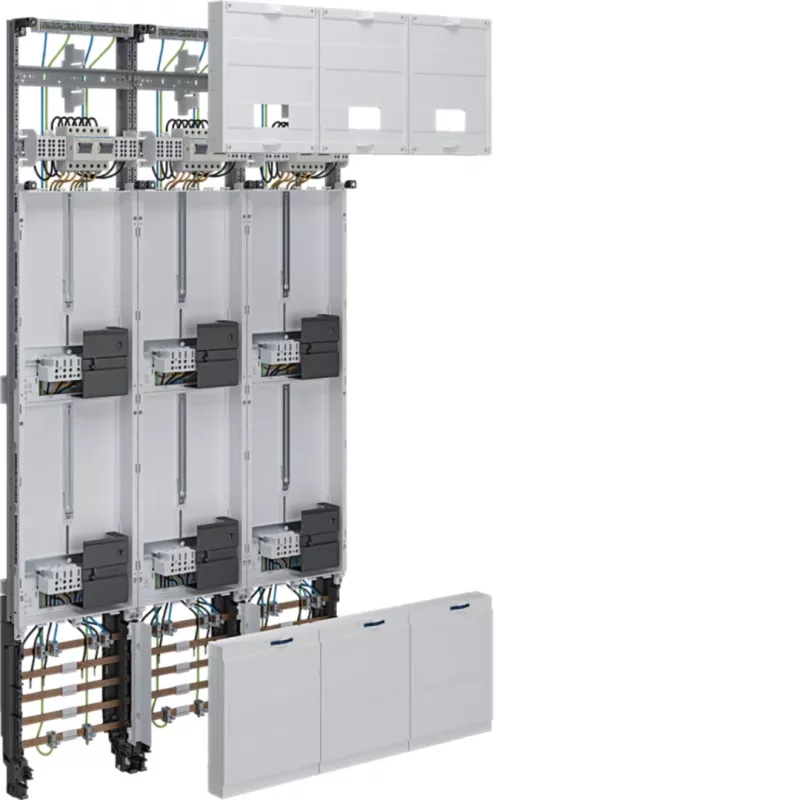

Hager universZ panel completo de contadores 1350x750mm trifásico 6 posiciones de contador 10 mm² con función de corte ZL53W8NT

In residential and commercial distribution boards, this Hager universZ complete metering field provides a pre-assembled solution for three-phase metering with six meter positions. The integrated disconnect function allows safe isolation of the main circuit, making it suitable for multi-tenant buildings and commercial installations where individual metering is required.

Key specifications

• Product type: Complete metering field
• Series: Hager universZ
• Number of meter positions: 6
• Phase configuration: 3-phase
• Main conductor cross-section: 10 mm²
• Integrated disconnect function: Yes (main switch)
• Nominal voltage: 230/400 V AC
• Nominal current (main switch): Up to 63 A
• Mounting compatibility: For universZ distribution cabinets
• Height: 1350 mm
• Width: 750 mm
• Depth: 160 mm
• Protection degree (internal): IP2XC
• Material: Galvanized sheet steel
• Busbar system: 5-pole
• Terminal type: Screw terminals
• Pre-assembled: Yes
• Application: Residential and commercial metering/distribution
• Standards compliance: DIN VDE
• Number of distribution rows: 7

Why choose it

This metering field is pre-assembled, reducing installation time and ensuring consistent quality. The integrated disconnect function enhances safety during maintenance. The galvanized steel construction provides durability, and the 5-pole busbar system supports three-phase distribution with neutral and protective earth.

Ideal use cases

• Multi-tenant residential buildings requiring individual metering
• Commercial facilities with multiple metering points
• Distribution boards where a main disconnect switch is needed

Good to know

The field is designed for use with Hager universZ distribution cabinets, ensuring compatibility and a clean installation. It complies with DIN VDE standards, meeting German electrical safety requirements.
