f-tronic Cuadro de contadores 1 campo Z16 H=1350mm 2-3.HZ 7143305 1 (7143305)

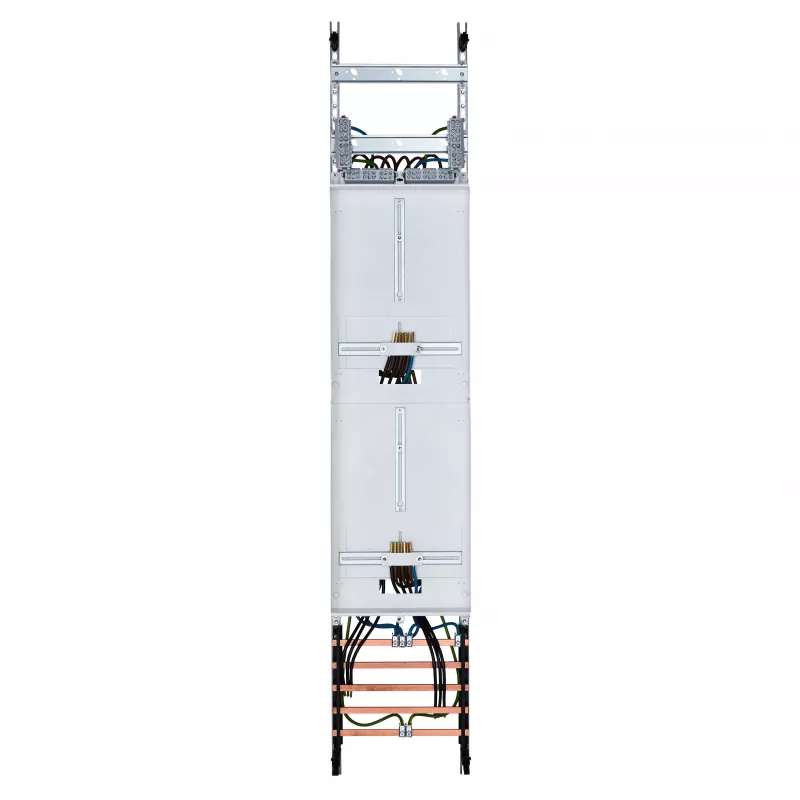

This meter field from f-tronic is a single-field unit designed for installations with 2 to 3 household meters, offering a height of 1350 mm to accommodate modern metering equipment. It stands out with its integrated BKE-I mounting plate for smart meters, preparation for a 3-pole SLS switch, and a dedicated APZ field for communication modules, making it ready for current smart metering requirements.

Highlights

• Single-field design for 2-3 household meters
• Includes BKE-I mounting plate for eHZ smart meters
• Prepared for 3-pole SLS switch
• 1x APZ field and 1x reserve space
• 5-pole busbar system rated 250A
• Galvanized sheet steel construction

In daily use

This meter field provides a robust and organized solution for multi-meter installations. The integrated distribution section offers 5 rows with a total of 60 TE units, allowing for additional circuit breakers or other modular devices. The galvanized steel housing ensures durability, while the design complies with relevant VDE standards for meter panels.

Full specifications

• Number of fields: 1
• Meter positions: 2-3.HZ
• Height: 1350 mm
• Width: 250 mm
• Depth: 120 mm
• Rated current (meter): up to 63 A
• Busbar system: 5-pole, 250A
• Distribution rows: 5
• Distribution units: 60 TE
• Material: Galvanized sheet steel
• Meter type compatibility: eHZ and conventional meters
• Mounting plate: BKE-I included
• SLS preparation: 3-pole
• APZ field: 1x
• Reserve space: 1x
• Standards: DIN VDE 0603-1, DIN 43870-1, VDE-AR-N 4100

Final note

Designed for reliable smart metering integration in residential and commercial installations.
