Hager universZ ZH53X3 Panel de contadores completo 1350mm 2 posiciones de contador 1 panel EON

Complete meter panel with 2 meter positions in a single field, 1350 mm high, pre-wired and approved for EON network areas including NRW, SH, MV and Lower Saxony.

Overview

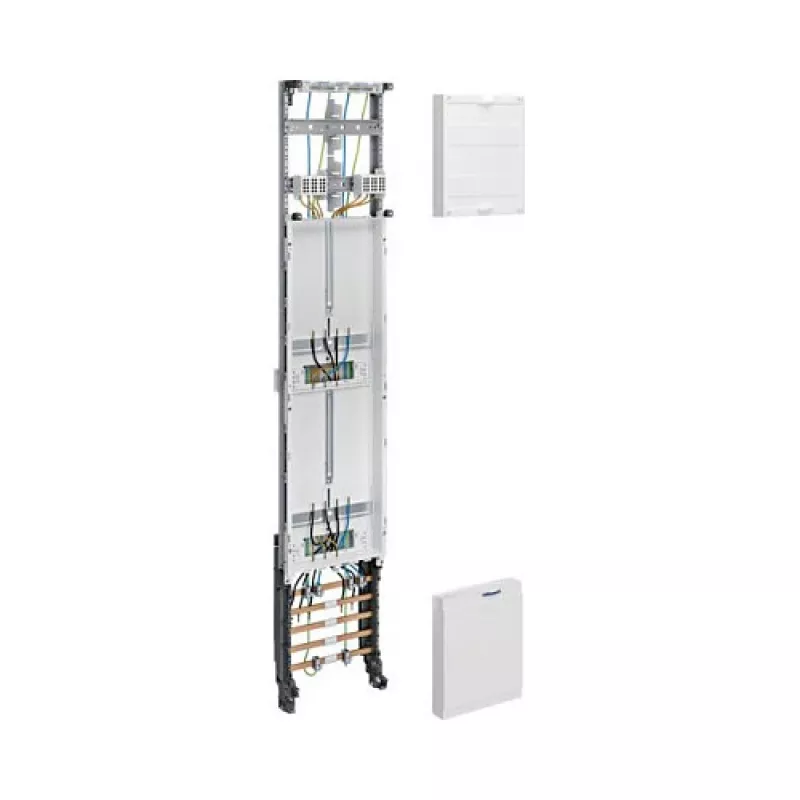

The Hager universZ ZH53X3 is a complete meter panel designed for residential and small commercial metering. It offers two meter positions in one field, with a 5-pole busbar system and screw terminals. The panel is partially pre-wired and includes main terminal blocks.

What stands out

• Two meter positions for eHZ meters
• Approved for EON utility areas
• Sheet steel construction, 1350 mm high
• Includes main circuit breaker positions and terminal blocks

Technical details

• Series: universZ
• Number of meter positions: 2
• Number of fields: 1
• Height: 1350 mm
• Width: 250 mm
• Depth: 160 mm
• Material: Sheet steel
• Busbar system: 5-pole
• Connection: Screw terminals
• Distribution rows: 7
• Modules per row: 12
• Pre-wired: Partially

Our verdict

A robust and compliant metering solution for EON network regions, offering flexibility and ease of installation.
