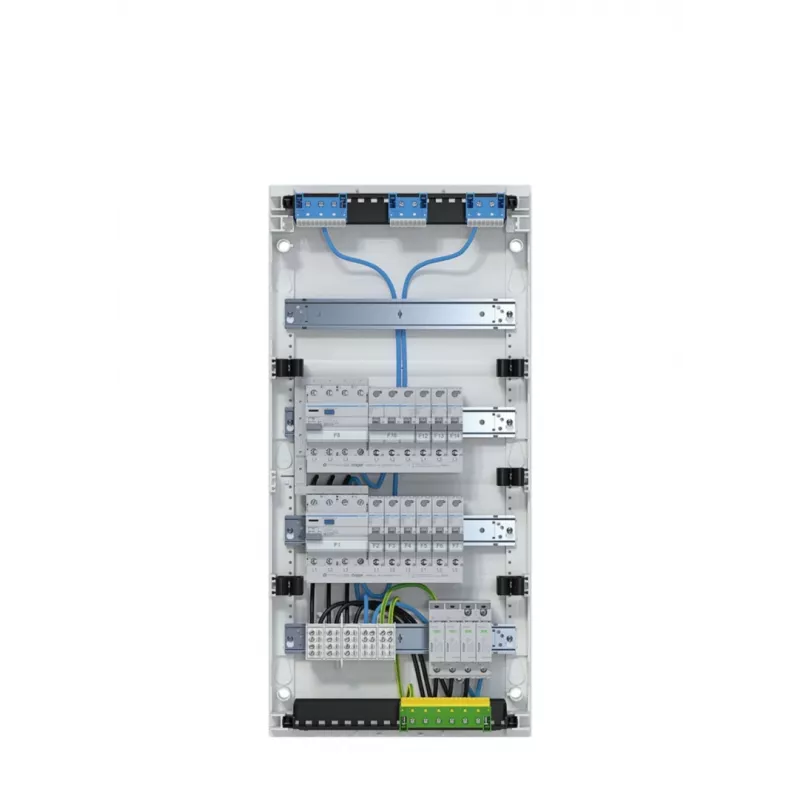

HAGER VA48BV1 Cuadro de distribución pequeño 4x12 PLE IP30 superficie listo para cablear

The HAGER VA48BV1 is a high-quality small distribution board designed for residential and light commercial applications. It features a surface-mounted enclosure with 4 rows, each accommodating 12 modules, providing a total of 48 PLE (Pole Line Equipment) positions. The board is pre-equipped and ready for wiring, ensuring quick and efficient installation. With an IP30 protection rating and double insulation (Class II), it offers reliable safety and durability. The transparent plastic door allows easy visual inspection of the installed components.

Advantages

This distribution board offers numerous benefits: space-saving design with 48 modules in a compact form factor, transparent door for easy monitoring, and pre-equipped terminals (2 N-terminal blocks and 2 PE-terminal blocks) for simplified wiring. The surface-mounting type (APVA) makes it suitable for retrofit or new installations where flush mounting is not possible. Compliant with DIN VDE 0603-1 and IEC 60670-24 standards, it ensures safety and reliability.

Suitable for

• Residential electrical distribution
• Light commercial buildings
• Small offices and shops
• Renovation projects requiring surface-mounted enclosures

Key specifications

• Product Type: Small Distribution Board
• Mounting Type: Surface-mounted (APVA)
• Number of Rows: 4
• Modules per Row: 12
• Total Modules (PLE): 48
• IP Protection Class: IP30
• Protection Class: II (double insulated)
• Housing Material: Plastic
• Door Type: Transparent
• Door Material: Plastic
• Color: White (RAL 9010)
• Rated Voltage: 400 V AC
• Rated Current (max): 63 A
• N-Terminal Blocks: 2 (with multiple connection points)
• PE-Terminal Blocks: 2 (with multiple connection points)
• Equipped Status: Ready for wiring (verdrahtungsfertig)
• Glow-wire Test: 650 °C
• Standards: DIN VDE 0603-1, IEC 60670-24
• Application: Residential, Light Commercial

Recommendations

For optimal performance, pair this distribution board with HAGER modular devices such as MCBs, RCCBs, and RCBOs. Ensure proper installation by a qualified electrician. The transparent door allows for easy visual inspection of status indicators without opening the enclosure.
