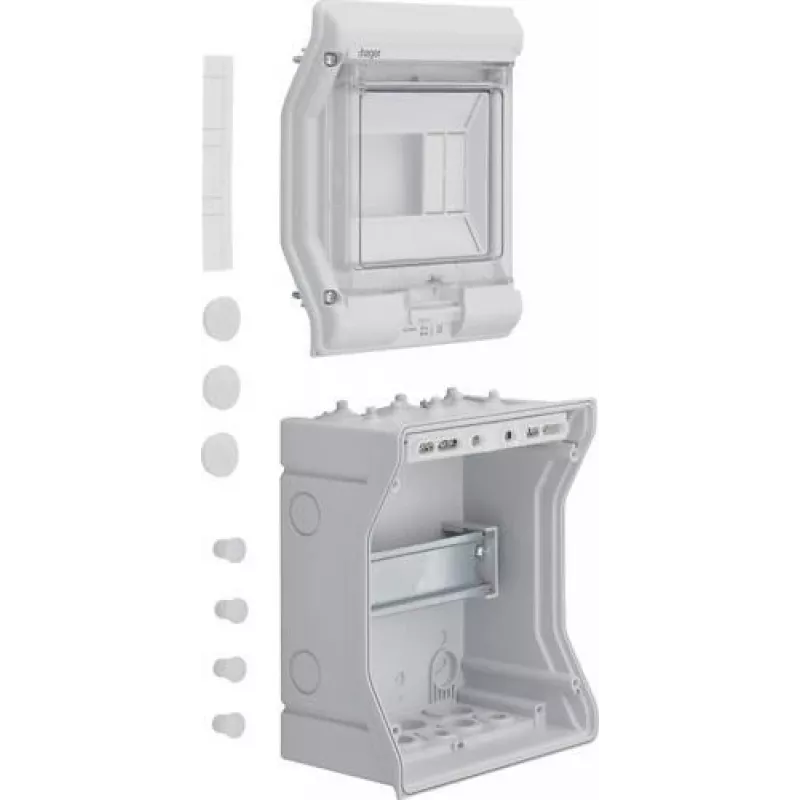

Hager VE106D cuadro de distribución de superficie 6 módulos 1 fila IP30 blanco

The Hager VE106D is a surface-mounted small distribution board offering six module units in a single row, ideal for organizing and protecting electrical circuits in residential or commercial settings. Its compact design and pre-punched knockouts facilitate straightforward cable entry and installation.

Advantages

The enclosure is made of white polystyrene (RAL 9010), providing a clean appearance and resistance to impact (IK05). It includes N and PE terminal blocks with screw terminals, simplifying wiring. The board meets DIN VDE 0603-1 and IEC 60670-24 standards, ensuring reliable performance.

Suitable for

• Residential electrical distribution
• Small commercial installations
• Surface-mounted applications

Key specifications

• Number of module units: 6
• Number of rows: 1
• Mounting type: Surface-mounted
• Protection class: IP30
• Impact resistance: IK05
• Enclosure material: Plastic (Polystyrene)
• Enclosure colour: White (RAL 9010)
• Rated operational voltage: 400 V AC
• Rated current: 63 A
• Glow wire test temperature: 650 °C
• Internal installation depth: 70 mm
• Operating temperature range: -5 to 40 °C

Recommendations

For a neat and compliant electrical installation, pair this distribution board with Hager modular devices and appropriate cable glands to maintain the IP30 protection.
