Hager Volta VH48BV1 Distribuidor para tabique hueco 4x12 PLE 2 circuitos RCD 48 módulos IP30 blanco

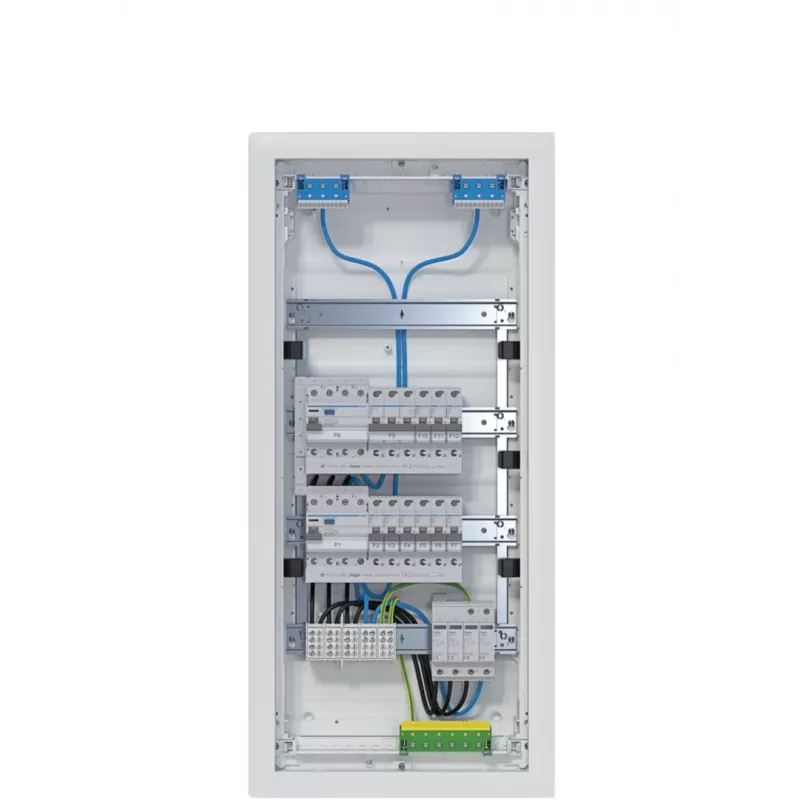

The Hager Volta VH48BV1 is a high-quality cavity wall distribution board designed for efficient and safe electrical distribution in residential and commercial installations. With 48 module units (4 rows of 12 PLE) and support for 2 RCD circuits, it offers ample space for circuit breakers and protective devices. The flush-mounted design with a reversible steel door ensures a clean, professional finish.

Advantages

Robust construction with a plastic housing and steel door provides durability and protection. The IP30 rating and double insulation (protection class II) ensure safety in indoor environments. QuickConnect technology for PE/N terminals simplifies installation, while pre-punched knockouts on top, bottom, and sides offer flexible cable entry.

Suitable for

• Residential electrical distribution systems
• Commercial buildings requiring flush-mounted distribution boards
• Installations needing up to 48 module units and 2 RCD circuits

Key specifications

• Product Type: Cavity Wall Distribution Board
• Series: Hager Volta
• Model: VH48BV1
• Number of Rows: 4
• Total Module Units: 48 (4 x 12 PLE)
• Mounting Type: Flush-mounted / Cavity Wall
• Degree of Protection: IP30
• Protection Class: II (double insulated)
• Rated Current: Up to 63 A
• Housing Material: Plastic (Polystyrene)
• Door Material: Steel Sheet
• Door Color: White (RAL 9010)
• Door Type: Steel door, flush-mounted, reversible
• Door Opening Angle: 120°
• Glow Wire Test: 850 °C
• PE/N Terminals: Included (QuickConnect technology)
• Cable Entry: Top, bottom, side (pre-punched knockouts)
• Mounting Depth: 90 mm
• Suitable for RCD Circuits: Yes, designed for 2 RCD circuits
• Standards/Certifications: VDE, CE

Recommendations

For optimal performance, pair with Hager Volta circuit breakers and accessories. Ensure proper installation by a qualified electrician.
