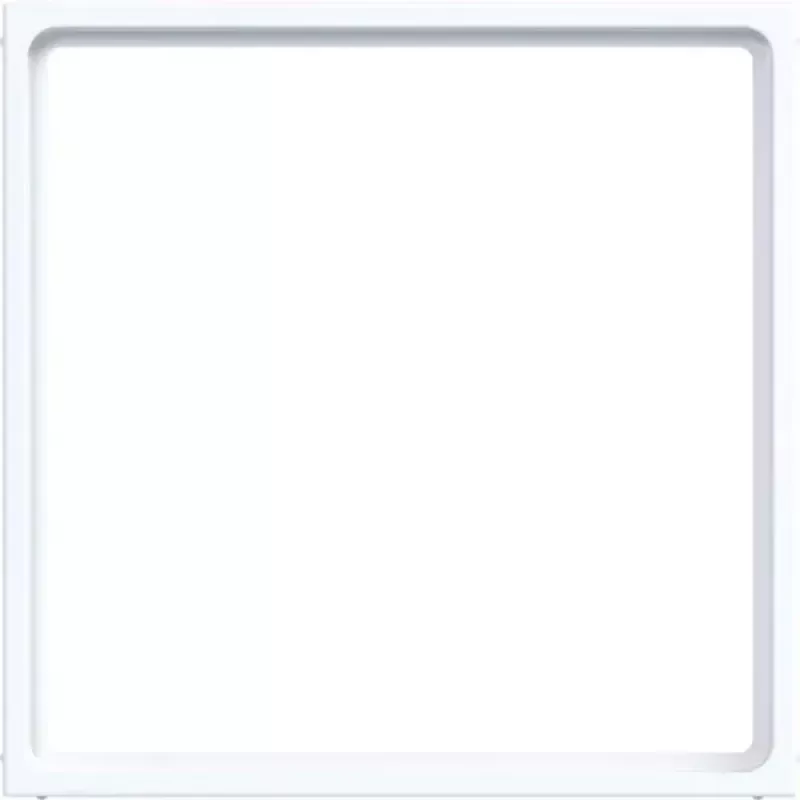

Hager WAF7074WG anillo intermedio para placa central 51x51mm blanco polar

The Hager WAF7074WG Intermediate Ring is a high-quality accessory designed to adapt 51x51mm central plates to standard switch frames. Ideal for use with Hager switch ranges such as Systo and Kallysto, this ring provides a seamless and professional finish for your electrical installations.

Advantages

Made from durable thermoplastic with a glossy polar white finish (RAL 9010), this intermediate ring is halogen-free, UV resistant, and RoHS compliant. It offers IP20 protection and IK05 impact resistance, ensuring long-lasting performance in indoor environments.

Suitable for

• Adapting 51x51mm central plates to Hager switch frames
• Use in residential and commercial electrical installations
• Compatible with Hager Systo and Kallysto series

Key specifications

• Product Type: Intermediate Ring
• Colour: Polar White (RAL 9010)
• Material: Thermoplastic
• Surface Finish: Glossy
• Inner Module Dimension (W x H): 51 x 51 mm
• Outer Visible Dimension (W x H): 71 x 71 mm
• Depth: 11 mm
• Protection Class: IP20
• Impact Resistance: IK05
• Mounting Type: Clip-on / Snap-in
• Number of Gangs: 1-gang
• Halogen-Free: Yes
• UV Resistant: Yes
• RoHS Compliant: Yes

Recommendations

For best results, pair this intermediate ring with Hager central plates and switch frames from the same series. Ensure proper installation by a qualified electrician.
