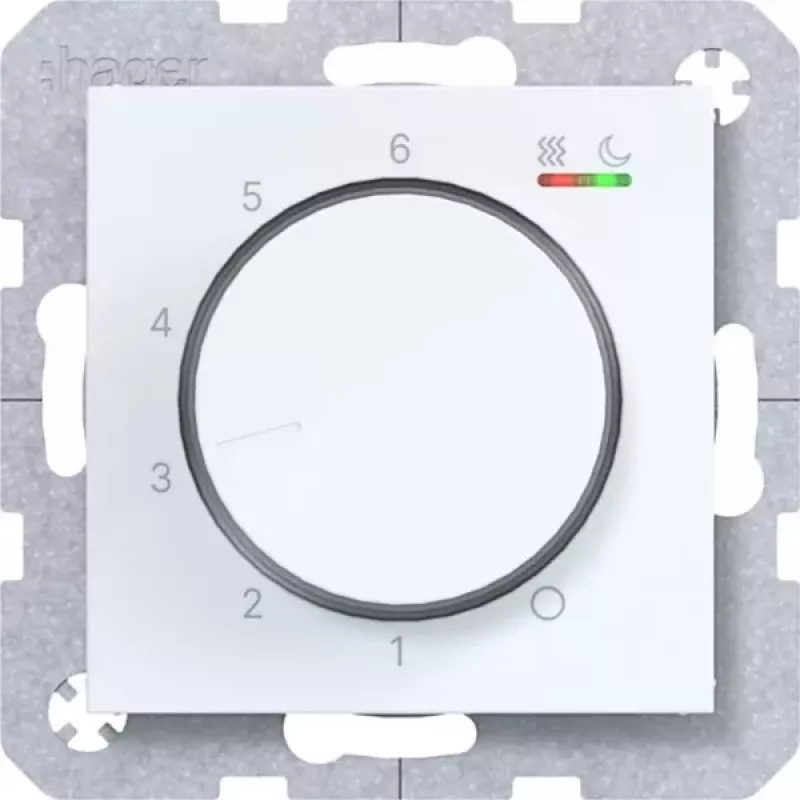

HAGER WAN5010WG termostato de ambiente 230V 16A mando giratorio con pulsador calefacción

Maintaining a comfortable room temperature without manual intervention can be a challenge in many heating systems. The HAGER WAN5010WG room temperature controller solves this by automatically regulating heating based on your desired setpoint. Its electromechanical bimetallic sensor and rotary knob with push-button allow precise adjustment from +5°C to +30°C, while the frost protection function prevents freezing when you're away.

Who is it for

This controller is ideal for electricians, installers, and homeowners who need a reliable, flush-mounted thermostat for electric heating systems. It suits standard flush boxes and handles resistive loads up to 16 A, making it versatile for baseboard heaters, radiant panels, or similar applications.

Main features

• Electromechanical control with bimetallic sensor for dependable operation.
• Rotary knob with push-button for easy temperature setting and switching.
• Frost protection fixed at +5°C to safeguard against freezing.
• 1-pole normally open contact for straightforward wiring.
• Polar white (RAL 9010) finish blends with most interiors.

Specifications

• Operating voltage: 230 V AC, 50/60 Hz.
• Switching current: 16 A resistive, 4 A inductive (cos φ = 0.6).
• Temperature setting range: +5°C to +30°C, differential approx. 0.5 K.
• Internal air sensor, screw terminals for conductors up to 2.5 mm².
• Flush-mounted, IP30, power consumption < 0.5 W.

Tips

For optimal performance, install the controller in a location with free air circulation, away from direct sunlight or heat sources. The push-button allows manual on/off without changing the setpoint, useful for temporary adjustments.
