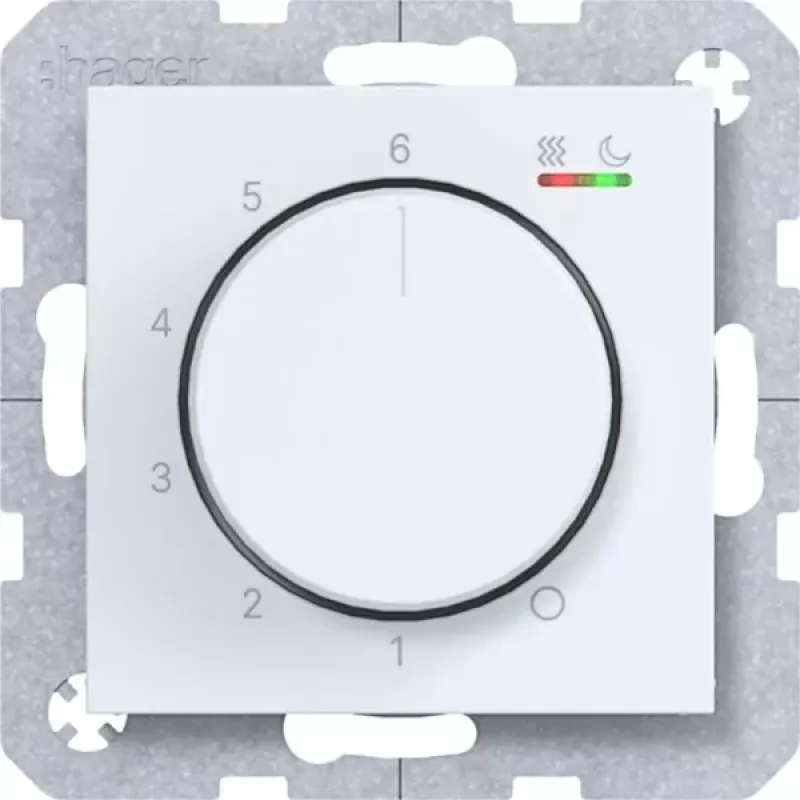

Hager WAN5011WM termostato de ambiente 230V 15W pulsador giratorio/de presión calefacción/refrigeración blanco polar

Maintaining a comfortable room temperature without constant manual adjustment can be a challenge. The Hager WAN5011WM room temperature controller solves this by providing reliable mechanical control for heating or cooling systems. Its rotary/push button design allows precise temperature setting between +5 and +30 °C, while the selectable operating mode makes it suitable for both heating and cooling applications. The built-in frost protection function helps prevent damage from low temperatures when set to the minimum position.

Who is it for

This controller is ideal for electricians, HVAC installers, and homeowners who need a straightforward, non-programmable thermostat for flush-mounted installation in residential or commercial buildings. It is particularly useful in rooms where a simple, robust temperature control is required without complex programming.

Main features

• Mechanical bimetal control for reliable operation
• Selectable heating or cooling mode
• Rotary/push button for easy adjustment
• Frost protection via minimum temperature setting
• Flush-mounted design for standard flush boxes
• Polar white (RAL 9010) thermoplastic housing

Specifications

• Operating voltage: 230V AC, 50/60 Hz
• Switching current (ohmic load): 10 A
• Switching current (inductive load): 4 A
• Temperature setting range: +5 to +30 °C
• Switching differential: approx. 0.5 K
• Protection class: IP20
• Power consumption: < 0.5 W
• Ambient temperature (operation): 0 to +50 °C
• Connections: screw terminals
• Display: no

Tips

For optimal performance, install the controller in a location with good air circulation and away from direct sunlight or heat sources. Ensure the flush box is compatible with the controller's dimensions. The rotary/push button can be used to switch between heating and cooling modes as needed.
