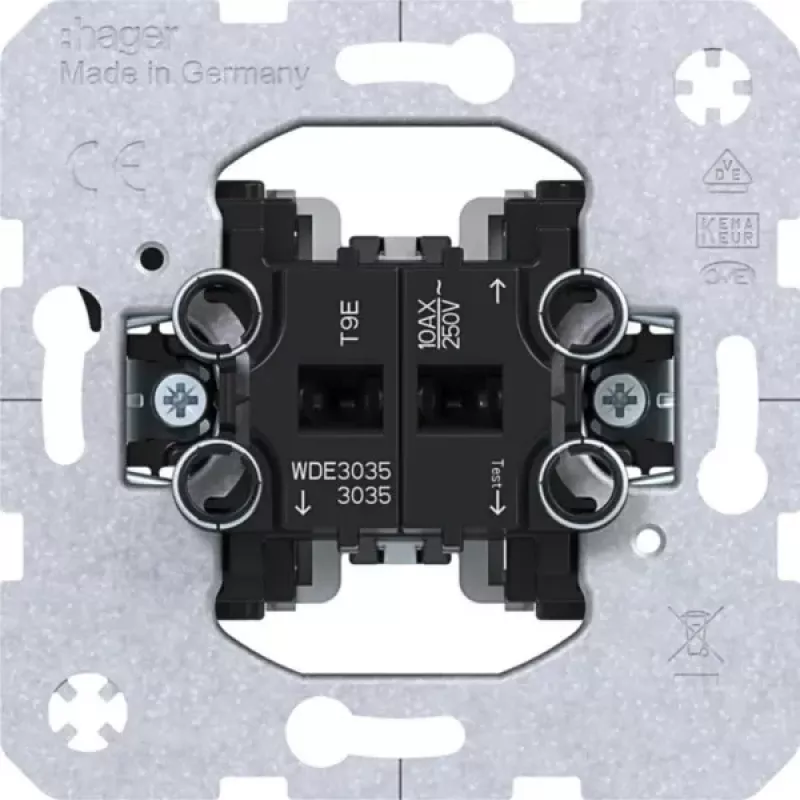

Hager WDE3035 Mecanismo interruptor, empotrar, 10 AX, 250 V, bornes de tornillo, libre de halógenos

Unlike generic switch mechanisms that often compromise on terminal space or material quality, the Hager WDE3035 series switch insert pairs a compact thermoplastic body with generous screw terminals, making it a reliable choice for both new wiring and retrofit projects in residential or commercial settings.

Highlights

• Series switching function: one double rocker controls two separate circuits from a single mounting point.
• Rated at 10 AX, 250 V AC – suitable for lighting and small motor loads up to 2300 W.
• Flush-mounted (UP) design fits standard European wall boxes with 60 mm fixing centres.
• Screw terminals accept rigid conductors from 1.5 to 2.5 mm², ensuring secure and maintenance-free connections.
• Halogen-free thermoplastic housing reduces toxic smoke in the event of fire.
• IP20 protection when installed with a compatible Hager frame and rocker.
• VDE and CE certified for safety and performance.

In daily use

Installing the WDE3035 is straightforward: connect the incoming phase and two outgoing load wires to the clearly marked screw terminals, then snap the insert into a standard flush box and complete with a Hager WDE series double rocker and frame. The rocker action is crisp and durable, rated for tens of thousands of operations. Because the insert is halogen-free and made of high-grade thermoplastic, it remains stable over a wide temperature range.

Full specifications

• Product Type: Switch Insert
• Switch Function: Series Switch (Double Switch)
• Mounting Type: Flush-mounted (UP)
• Rated Current: 10 AX
• Rated Voltage: 250 V AC
• Connection Type: Screw Terminals
• Number of Terminals: 3
• Terminal Capacity: 1.5 - 2.5 mm² (rigid conductors)
• Material: Thermoplastic
• Halogen-free: Yes
• IP Protection Class: IP20 (when installed)
• Switching Principle: Rocker
• Compatibility: Hager WDE series (for rockers and frames)
• Operating Temperature Range: -5 to +40 °C
• Certification: VDE, CE
• Number of Rockers Required: 1 (double rocker)

Final note

The Hager WDE3035 is a dedicated series switch insert engineered for flush-mounted installations where a single rocker must control two independent circuits, offering reliable performance and safety.
