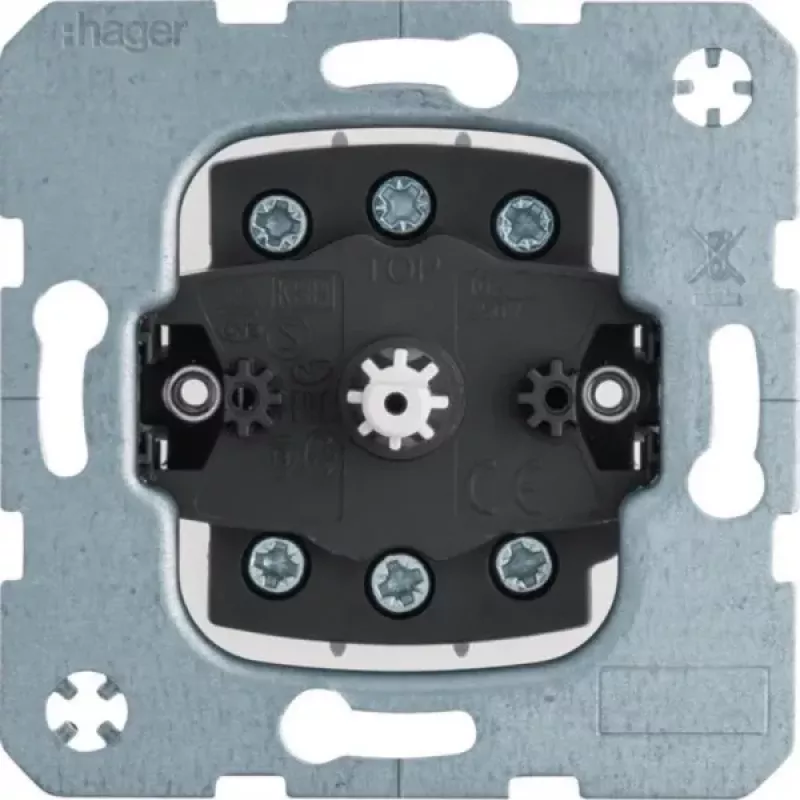

Hager WDE384203 Interruptor giratorio de empotrar de 2 polos para persianas con función pulsador/rastreo

The Hager WDE384203 is a high-quality 2-pole rotary switch designed for controlling blinds, shutters, and awnings. This flush-mounted (UP) switch features both momentary (Tast) and latching (Rast) functions, providing versatile control for your window coverings. With a rated current of 10 A and voltage of 250 V AC, it is suitable for standard residential and commercial installations. The switch includes a neutral middle position and uses screw terminals for secure connections. Compatible with Hager Berker S.1, B.3, and B.7 series central plates and rockers, it offers seamless integration into existing systems.

Advantages

Dual momentary and latching operation allows for precise control of blind movement. The flush-mount design ensures a clean, professional finish. Robust thermoplastic construction guarantees long-lasting durability. Easy installation with screw terminals and standard 32 mm depth.

Suitable for

• Controlling electric blinds, shutters, and awnings
• Residential and commercial building automation
• Integration with Hager Berker switch series

Key specifications

• Product Type: Rotary Switch
• Application: Blinds, Shutters, Awnings
• Number of Poles: 2-pole
• Mounting Type: Flush-mounted (Unterputz)
• Operating Mode: Momentary and Latching
• Rated Current: 10 A
• Rated Voltage: 250 V AC
• Frequency: 50/60 Hz
• Connection Type: Screw Terminals
• Neutral Position: Yes (Middle Position)
• Material: Thermoplastic
• IP Protection Class: IP20
• Installation Depth: 32 mm
• Compatibility: Hager Berker S.1, B.3, B.7 series
• Series: Hager WDE (Berker)
• Control Type: Mechanical
• Switching Function: Changeover Switch
• Colour (Mechanism): Grey/Black

Recommendations

For optimal performance, use with compatible Hager Berker central plates. Ensure proper installation by a qualified electrician. This switch is ideal for new constructions or retrofitting existing blind control systems.
