Hager WDE503503 Mecanismo pulsador serie 2 contactos NA bornes de entrada separados

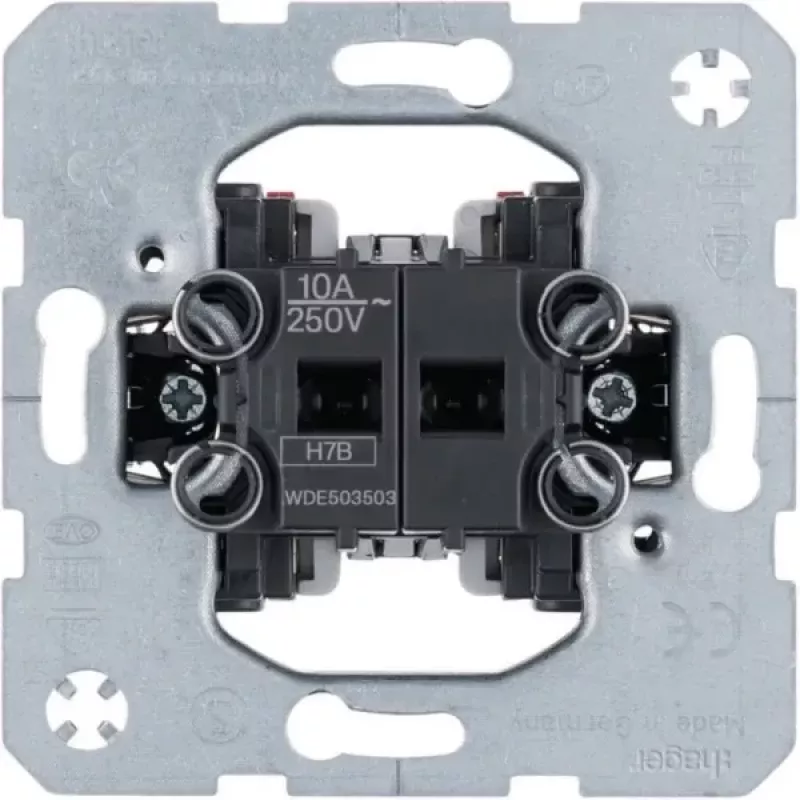

The Hager WDE503503 is a high-quality series push-button switch mechanism designed for flush-mounted installations. Featuring two normally open (NO) contacts with separate input terminals, this modular insert is ideal for lighting and general switching control applications. Manufactured by Hager, a trusted brand in electrical installations, this switch mechanism ensures reliable momentary switching for series control circuits.

Advantages

Reliable momentary switching with two independent make contacts; separate input terminals allow flexible wiring; halogen-free thermoplastic housing for safety; compatible with standard flush boxes and Hager/Berker cover plates; rated for 250 V AC and 10 A for robust performance.

Suitable for

• Lighting control in residential and commercial buildings
• Series switching applications requiring two push-buttons
• Flush-mounted installations with standard 60 mm boxes
• Integration with Hager or Berker cover plate systems

Key specifications

• Product Type: Series Push-Button Switch Mechanism
• Number of Contacts: 2 (Normally Open)
• Terminal Configuration: Separate Input Terminals
• Rated Voltage: 250 V AC
• Rated Current: 10 A
• Mounting Type: Flush-mounted
• Connection Type: Screw Terminals
• Switching Function: Momentary
• Housing Material: Thermoplastic, Halogen-free
• IP Protection: IP20 (mechanism only)
• Colour: White/Light Grey

Recommendations

For complete installation, pair with a suitable Hager or Berker cover plate (sold separately). Ensure flush box depth accommodates the mechanism. Always follow local electrical codes and safety regulations.
