Hager witty solar II XVL122SFL estación de carga EV con toma Type-2 22kW y optimización solar

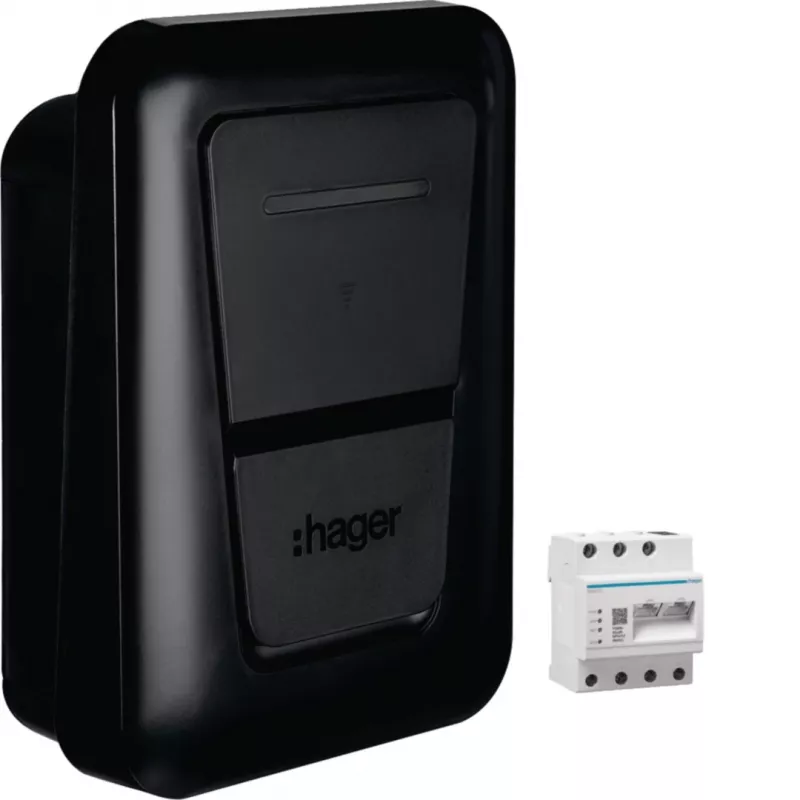

Delivering up to 22 kW of charging power, the Hager witty solar II XVL122SFL is a wall-mounted charging station engineered for high-performance electric vehicle charging with integrated solar self-consumption optimization.

Overview

The Hager witty solar II XVL122SFL is a Mode 3 charging station with a Type 2 socket and shutter (T2S+), providing a single charging point. It operates on a 400V three-phase or 230V single-phase AC supply with a maximum input current of 32 A, enabling a configurable charging power up to 22 kW. The unit features an integrated MID-certified energy meter and dynamic load management (DLM) to balance energy usage efficiently.

What stands out

• Solar optimization for maximizing PV self-consumption
• Integrated MID-certified energy meter for precise consumption tracking
• Dynamic load management to prevent grid overload
• RFID access control with two cards included
• Robust IP55 and IK10 rated enclosure for indoor and outdoor installation
• Multiple communication interfaces: Ethernet, Wi-Fi, Modbus RTU, and OCPP 1.6 J

Technical details

• Charging power: 22 kW (configurable)
• Number of charging points: 1
• Connector type: Type 2 socket with shutter (T2S+)
• Charging mode: Mode 3
• Input voltage: 400 V AC (3-phase) / 230 V AC (1-phase)
• Input current: 32 A (3-phase) / 32 A (1-phase)
• Frequency: 50/60 Hz
• Protection rating: IP55
• Impact resistance: IK10
• Mounting type: Wall-mounted
• Communication interfaces: Ethernet (RJ45), Wi-Fi, Modbus RTU, OCPP 1.6 J
• Access control: RFID (2 cards included)
• Load management: Dynamic Load Management (DLM)
• Solar optimization: Yes (for PV self-consumption)
• Integrated energy meter: Yes (MID certified)
• DC fault current detection: Integrated (6 mA DC)
• Operating temperature: -25 °C to +50 °C
• Housing material: Polycarbonate
• Standards compliance: IEC 61851-1, IEC 61851-22, IEC 62196-2

Our verdict

The Hager witty solar II XVL122SFL combines high charging power with advanced energy management features, making it an excellent choice for solar-equipped homes and businesses seeking efficient and future-proof EV charging.
