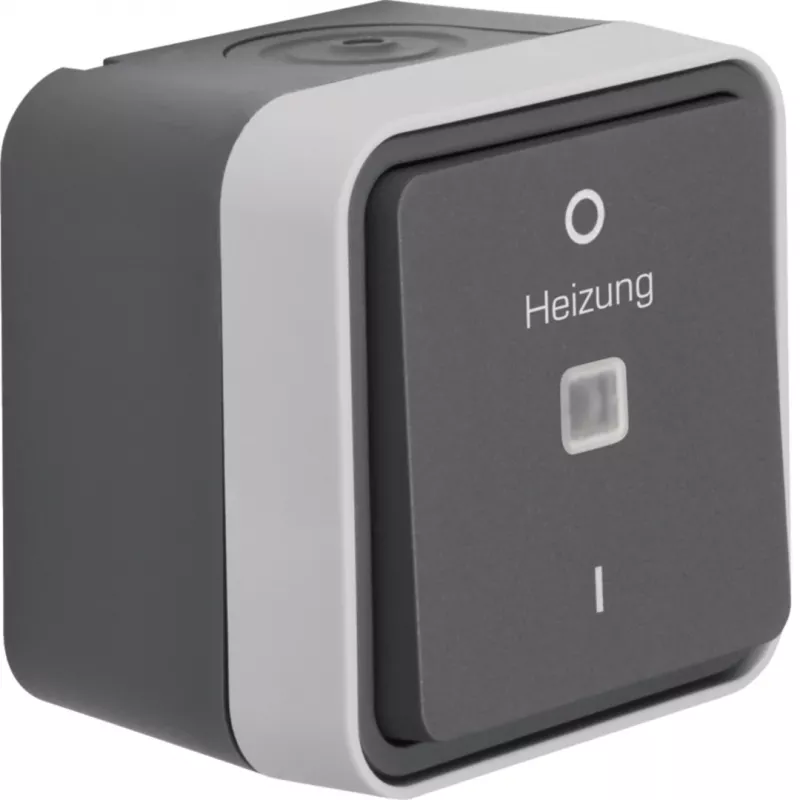

Hager WNC015 Interruptor de control de superficie 2 polos con piloto de control, gris

Electricians and facility managers often need a clearly visible switch that confirms at a glance whether a circuit is live. The Hager WNC015 is a 2-pole control switch with an integrated neon indicator lamp, designed for surface mounting. Its grey thermoplastic housing blends into workshops, utility rooms, and commercial environments where wiring is run on the wall surface.

Key specifications

• Switch function: Control switch (Kontroll-Ausschalter)
• Number of poles: 2-pole
• Mounting type: Surface-mounted (AP)
• Rated current: 10 A
• Rated voltage: 250 V AC
• Protection class: IP44
• Colour: Grey (RAL 7035)
• Material: Thermoplastic, halogen-free
• Connection type: Screw terminals
• Indicator light: Yes, neon lamp
• Terminal capacity: 2 x 2.5 mm²
• Operating temperature: -5 to +40 °C
• Type of actuation: Rocker/Toggle
• Cable entry: Top and bottom
• Impact resistance: IK07
• Glow wire test: 850 °C
• Standards: EN 60669-1
• Halogen-free: Yes

Why choose it

The integrated neon lamp provides immediate visual confirmation of switching status, reducing the risk of accidental contact with live parts. The 2-pole design isolates both live and neutral conductors for safer maintenance. The halogen-free thermoplastic housing meets strict fire safety requirements and is suitable for public buildings.

Ideal use cases

• Surface-mounted installations in workshops and garages
• Control of lighting or small motors where status indication is required
• Commercial buildings with visible wiring systems
• Retrofit projects where flush mounting is not possible

Good to know

The switch is designed for cable entry from top and bottom, simplifying wiring in surface-mounted conduits. Screw terminals accommodate conductors up to 2.5 mm², ensuring secure connections. The grey RAL 7035 colour matches standard electrical enclosures and trunking systems.
