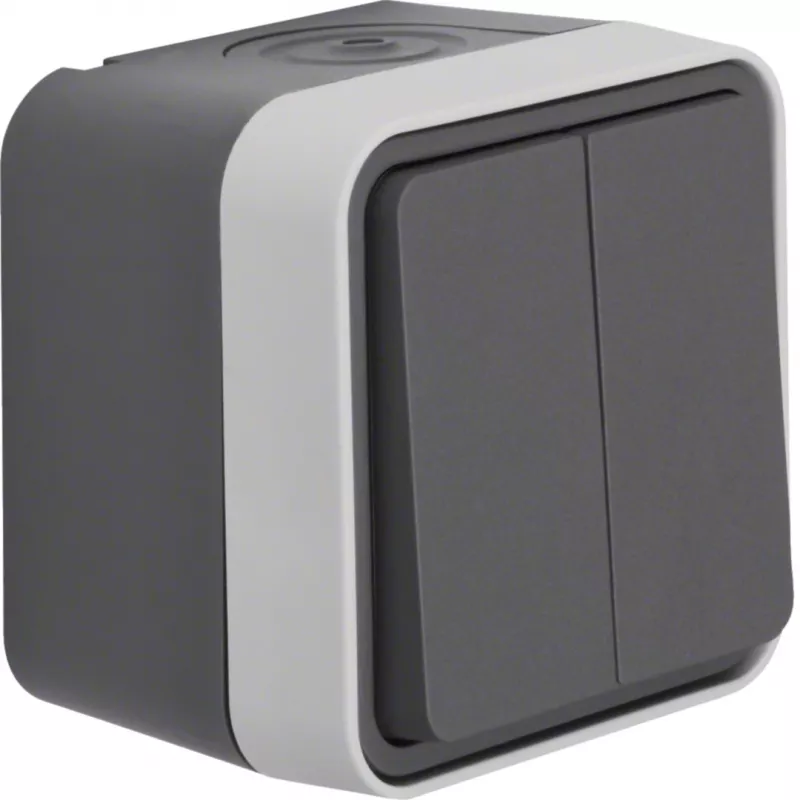

Hager WNC042 interruptor de superficie W.1 IP55 gris

Series switch with dual rockers for independent circuit control, built into a surface-mounted IP55 enclosure that withstands dust and water jets. The grey thermoplastic housing resists impact and weathering, making it a reliable choice for demanding installations.

Advantages

Two rockers allow separate switching of two circuits, while screw terminals accept rigid conductors from 1.5 to 2.5 mm² for secure, low-maintenance connections. Halogen-free materials and an 850 °C glow wire rating enhance safety in fire-sensitive areas. The robust enclosure ensures dependable operation in damp and dusty environments.

Suitable for

• Outdoor and semi-outdoor installations such as balconies, terraces, and carports
• Workshops, garages, and utility rooms with high humidity or dust
• Commercial and industrial facilities requiring IP55 protection
• Renovation projects where surface-mounted wiring is preferred

Key specifications

• Series switch (double switch) with two rockers
• Surface-mounted (AP) installation
• IP55 protection against dust and water jets
• Rated voltage: 250 V AC, rated current: 10 AX
• Thermoplastic housing, grey colour
• Screw terminals for 1.5–2.5 mm² rigid conductors
• Halogen-free, glow wire tested at 850 °C
• Operating temperature: -25 to +45 °C

Recommendations

For reliable switching in challenging environments, the Hager WNC042 offers the durability and safety needed for long-term performance. Its straightforward wiring and robust construction reduce installation time and maintenance costs.
