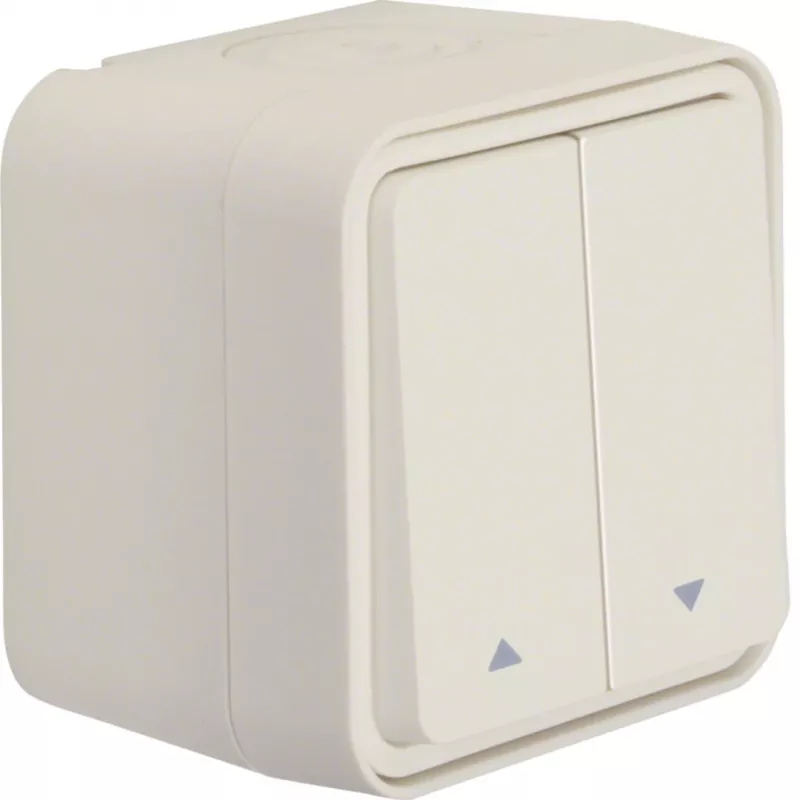

Hager WNC300B interruptor de persiana en serie de superficie 1 polo con símbolos de flecha IP55

The Hager WNC300B is a surface-mounted roller shutter series switch with IP55 protection, built for reliable control of blinds, shutters, awnings, and garage doors in demanding environments.

Overview

Part of the Hager W.1 series, this 1-pole switch features up/down arrow symbols for intuitive operation. Its robust thermoplastic, halogen-free housing withstands impact (IK07) and operates from -25 to +45 °C, making it suitable for both indoor and outdoor installations.

What stands out

• IP55-rated protection against dust and water jets
• Clear arrow markings for shutter direction
• Surface-mounted design for easy retrofit
• Halogen-free thermoplastic construction
• Wide operating temperature range

Technical details

• Rated current: 10 A
• Rated voltage: 250 V AC
• Connection: screw terminals, 1.5–2.5 mm²
• Impact resistance: IK07
• Standards: DIN EN 60669-1

Our verdict

A dependable, weather-resistant switch for roller shutter control, with clear labeling and solid build quality.
